Pic Gauges 3G-OTH-174755 — Technical Specifications

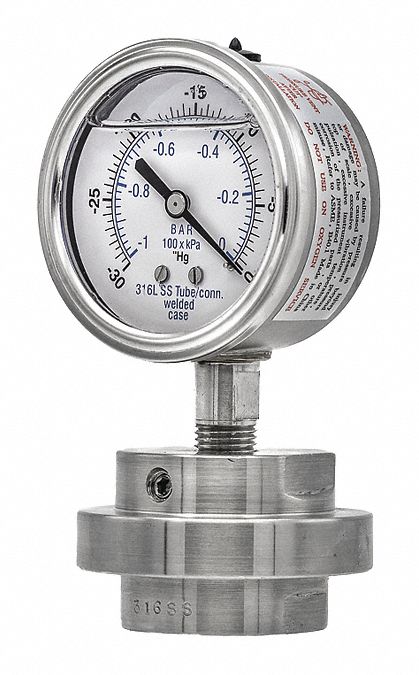

The PIC GAUGES Pressure Gauge with Diaphragm Seal is a low-pressure dial gauge with a 316 SS mini-seal, featuring a 2 1/2 in dial and bottom connection. It has a pressure range of 30 in Hg to 0 in Hg, an accuracy of ±2-1-2%, and a glycerin seal fill liquid. The gauge wetted parts are stainless steel, and the seal lower housing is made of 316 stainless steel, with no gauge case liquid.
Technical Specifications
| Parameter | Value |
|---|---|
| Dial | 2 1/2 in |
| Type | 301L/3JJJ, Bottom |
| Brand | PIC GAUGES |
| Accuracy | ±2-1-2% |
| Pressure Range | 30 in Hg to 0 in Hg |
| Seal Fill Liquid | Glycerin |
| Gauge Case Liquid | None |
| Gauge Wetted Parts | Stainless Steel |
| Manufacturer Part Number | 301L254A/3JJJ100 |
| Seal Lower Housing Material | 316 Stainless Steel |
