Eaton 3G-OTH-23380 — Technical Specifications

Name: Eaton 3G-OTH-23380 EATON Surge Protection Device: Three Phase, 240V AC Delta, 1000V (L-G, L-L), 240 V, Advanced Polymer (MPN SP1-240D). Key specifications — Voltage: 240V AC Delta; Max. Continuing Operating Voltage: 240 V; Voltage Protection Rating: 1000V (L-G, L-L); Enclosure Material: Advanced Polymer; Enclosure NEMA Rating: NEMA 4; Max. Surge Current per Mode: 50 kA; Brand: EATON.
Brand: Eaton

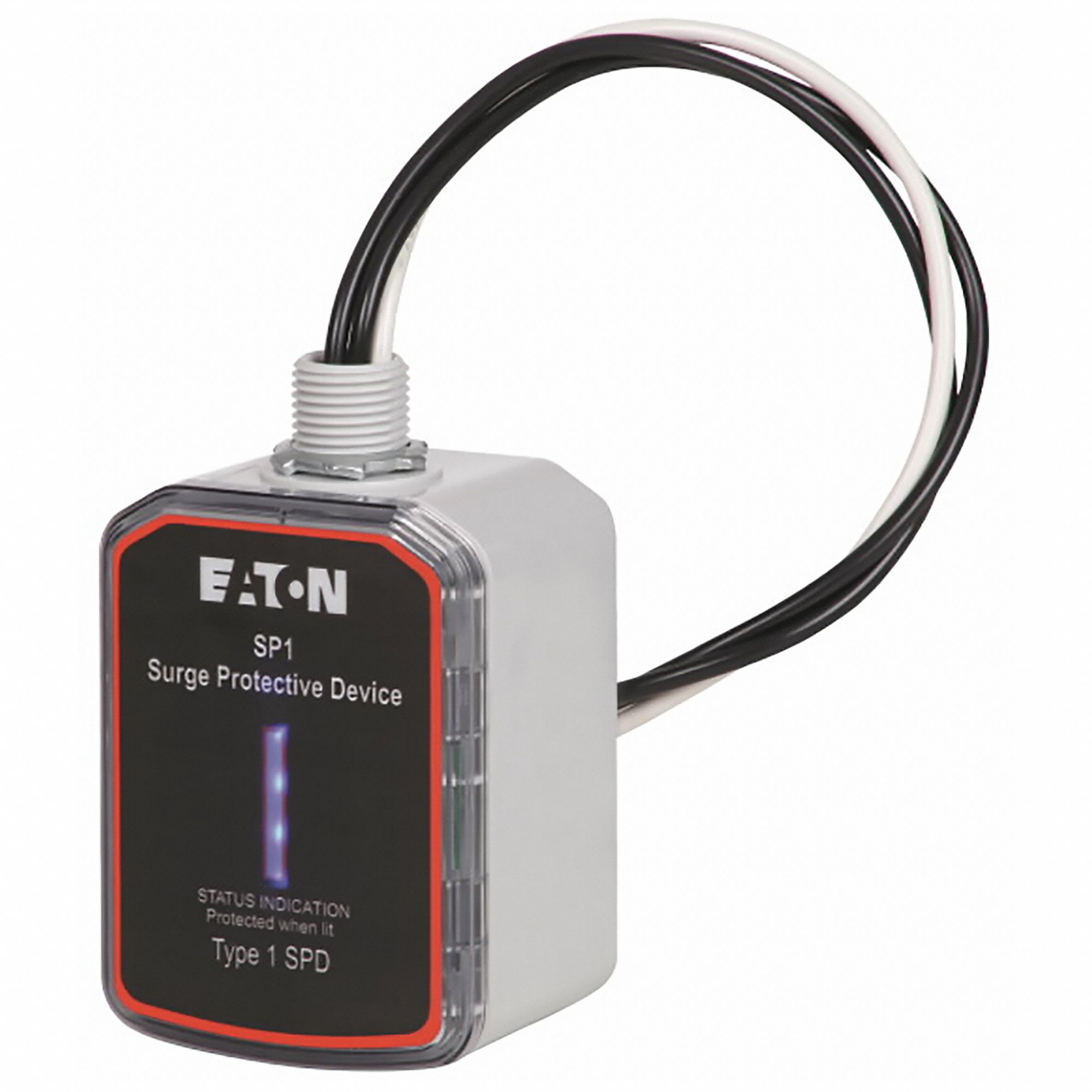

The EATON SP1-240D is a three-phase, chase-nipple external-mount surge protection device (SPD) with a 240V AC Delta voltage rating. It features a maximum continuing operating voltage of 240 V, a voltage protection rating of 1000V (L-G, L-L), and a maximum surge current per mode of 50 kA. The SPD is housed in an advanced polymer enclosure with a NEMA 4 rating.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1000V (L-G, L-L), 240 V, Advanced Polymer
Brand	EATON
Voltage	240V AC Delta
AC Delta	240V
Enclosure Material	Advanced Polymer
Enclosure NEMA Rating	NEMA 4
Manufacturer Part Number	SP1-240D
Voltage Protection Rating	1000V (L-G, L-L)
Max. Surge Current Per Mode	50 kA
Max. Continuing Operating Voltage	240 V
