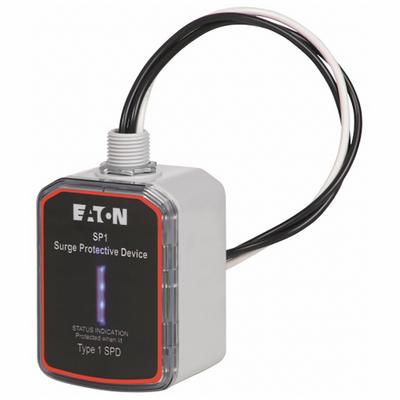

EATON Surge Protection Device: Three Phase, 240V AC Delta, 1000V (L-G, L-L), 240 V - Chase-Nipple External-Mount SPDs
EATONChase-Nipple External-Mount SPDs

EATON Surge Protection Device: Three Phase, 240V AC Delta, 1000V (L-G, L-L), 240 V

The EATON SP1-240D is a three-phase, chase-nipple external-mount surge protection device (SPD) with a 240V AC Delta voltage rating. It features a maximum continuing operating voltage of 240 V, a voltage protection…

SKU 3G-OTH-23380

Brand
EATON
Item
Surge Protection Device: Three Phase, 240V AC Delta, 1000V
Category
Chase-Nipple External-Mount SPDs
Series
L-G
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
SP1-240D
Type
1000V (L-G, L-L), 240 V, Advanced Polymer
Voltage
240V AC Delta
AC Delta
240V
Enclosure Material
Advanced Polymer
Enclosure NEMA Rating
NEMA 4
Voltage Protection Rating
1000V (L-G, L-L)
Max. Surge Current per Mode
50 kA
Max. Continuing Operating Voltage
240 V
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON SP1-240D is a three-phase, chase-nipple external-mount surge protection device (SPD) with a 240V AC Delta voltage rating. It features a maximum continuing operating voltage of 240 V, a voltage protection rating of 1000V (L-G, L-L), and a maximum surge current per mode of 50 kA. The SPD is housed in an advanced polymer enclosure with a NEMA 4 rating.
