Eaton 3G-OTH-42559 — Technical Specifications

Name: Eaton 3G-OTH-42559 EATON IEC Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size C, 12 A – 16 A (MPN XTOB016CC1). Key specifications — Brand: EATON; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: XT Mini Contactors; Frame Size: C; Phase Loss Sensitivity: No; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: Frame Size C.
Brand: Eaton

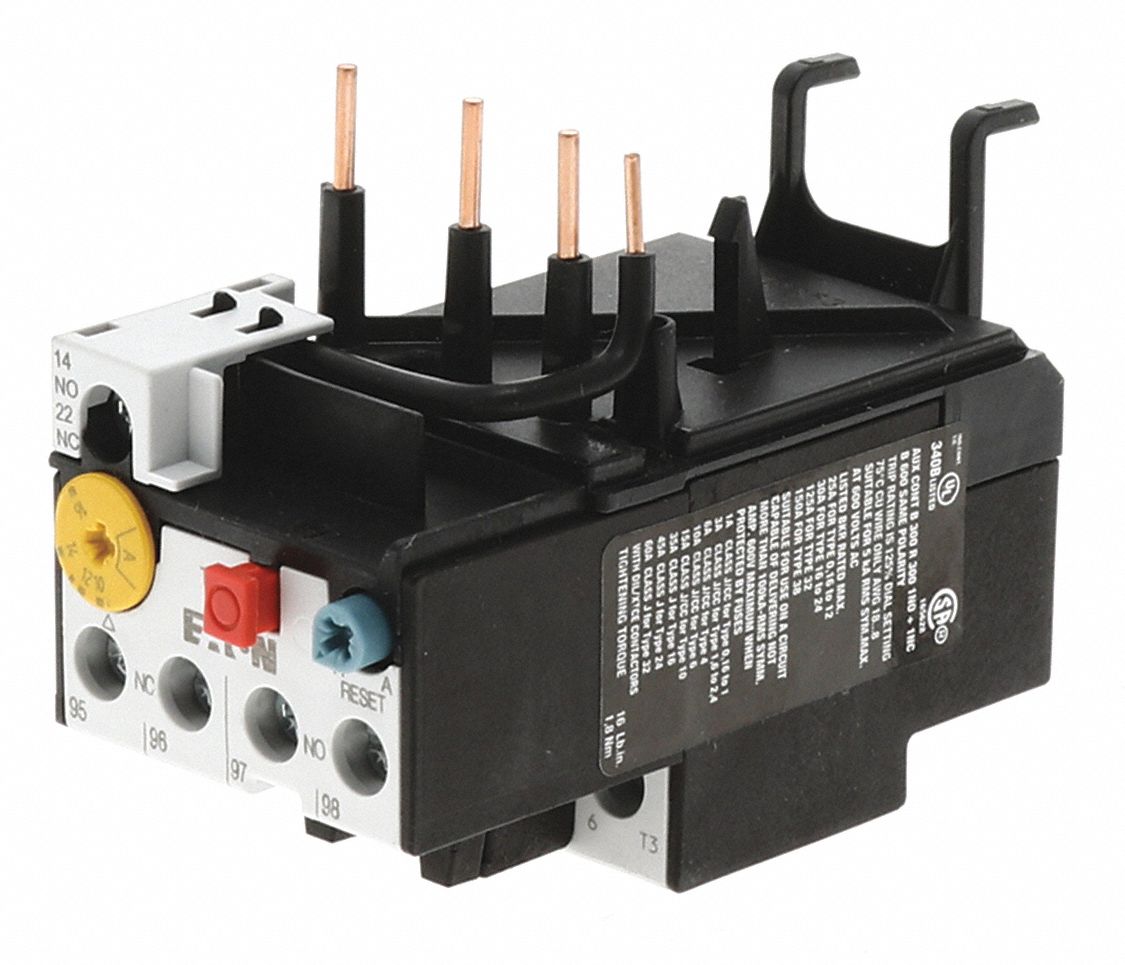

The EATON IEC Overload Relay: Thermal Protection (MPN XTOB016CC1) is a 3-pole thermal overload relay with Frame Size C, designed for use with EATON XT Mini Contactors of the same frame size. It features an auxiliary contact form of 1NO/1NC, an adjustable current range of 12 A – 16 A, and includes integrated bimetallic elements, requiring no separate thermal units. This relay does not offer phase loss sensitivity.

View Product & Quote

Technical Specifications

Parameter	Value
Type	1NO/1NC, Frame Size C, 12 A – 16 A
Brand	EATON
Poles	3
Frame Size	C
Compatible Contactors	Frame Size C
Auxiliary Contact Form	1NO/1NC
Phase Loss Sensitivity	No
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	XTOB016CC1
Compatible Contactor Series	XT Mini Contactors
