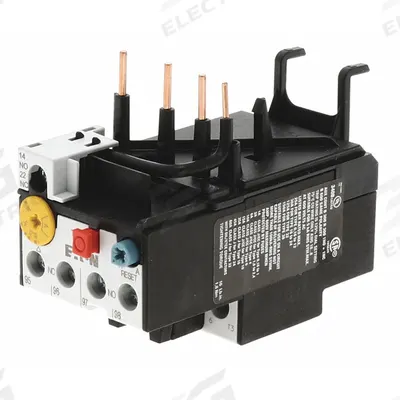

EATON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size C - IEC Thermal Overload Relays
EATONIEC Thermal Overload Relays

EATON Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size C

The EATON IEC Overload Relay: Thermal Protection (MPN XTOB016CC1) is a 3-pole thermal overload relay with Frame Size C, designed for use with EATON XT Mini Contactors of the same frame size. It features an auxiliary…

SKU 3G-OTH-42559

Brand
EATON
Item
Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Frame Size C
Category
IEC Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
XTOB016CC1
Type
1NO/1NC, Frame Size C, 12 A – 16 A
Poles
3
Frame Size
C
Compatible Contactors
Frame Size C
Auxiliary Contact Form
1NO/1NC
Phase Loss Sensitivity
No
Thermal Units Required
None (Relay Includes Integrated Bimetallic Elements)
Compatible Contactor Series
XT Mini Contactors
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON IEC Overload Relay: Thermal Protection (MPN XTOB016CC1) is a 3-pole thermal overload relay with Frame Size C, designed for use with EATON XT Mini Contactors of the same frame size. It features an auxiliary contact form of 1NO/1NC, an adjustable current range of 12 A – 16 A, and includes integrated bimetallic elements, requiring no separate thermal units. This relay does not offer phase loss sensitivity.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the EATON XTOB016CC1 overload relay used for?

The EATON XTOB016CC1 is a thermal overload relay used to protect motors from sustained overcurrent by monitoring current draw. It is designed for industrial applications with EATON XT Mini Contactors of Frame Size C, providing reliable thermal protection in motor control circuits.

What are the specifications of the EATON XTOB016CC1 overload relay?

The EATON XTOB016CC1 is a 3-pole thermal overload relay with Frame Size C, adjustable current range of 12 A – 16 A, and auxiliary contact form 1NO/1NC. It includes integrated bimetallic elements, requires no separate thermal units, and does not offer phase loss sensitivity. It is compatible with EATON XT Mini Contactors of Frame Size C.

Where to buy the EATON XTOB016CC1 overload relay worldwide?

You can source the EATON XTOB016CC1 overload relay worldwide through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time.

How to select the correct EATON overload relay for a contactor?

To select the correct EATON overload relay, match the frame size of the relay to the contactor frame size. For the XTOB016CC1, use it with EATON XT Mini Contactors of Frame Size C. Ensure the adjustable current range (12 A – 16 A) covers the motor full-load current. No separate thermal units are needed as the relay includes integrated bimetallic elements.
