Eaton 3G-OTH-36976 — Technical Specifications

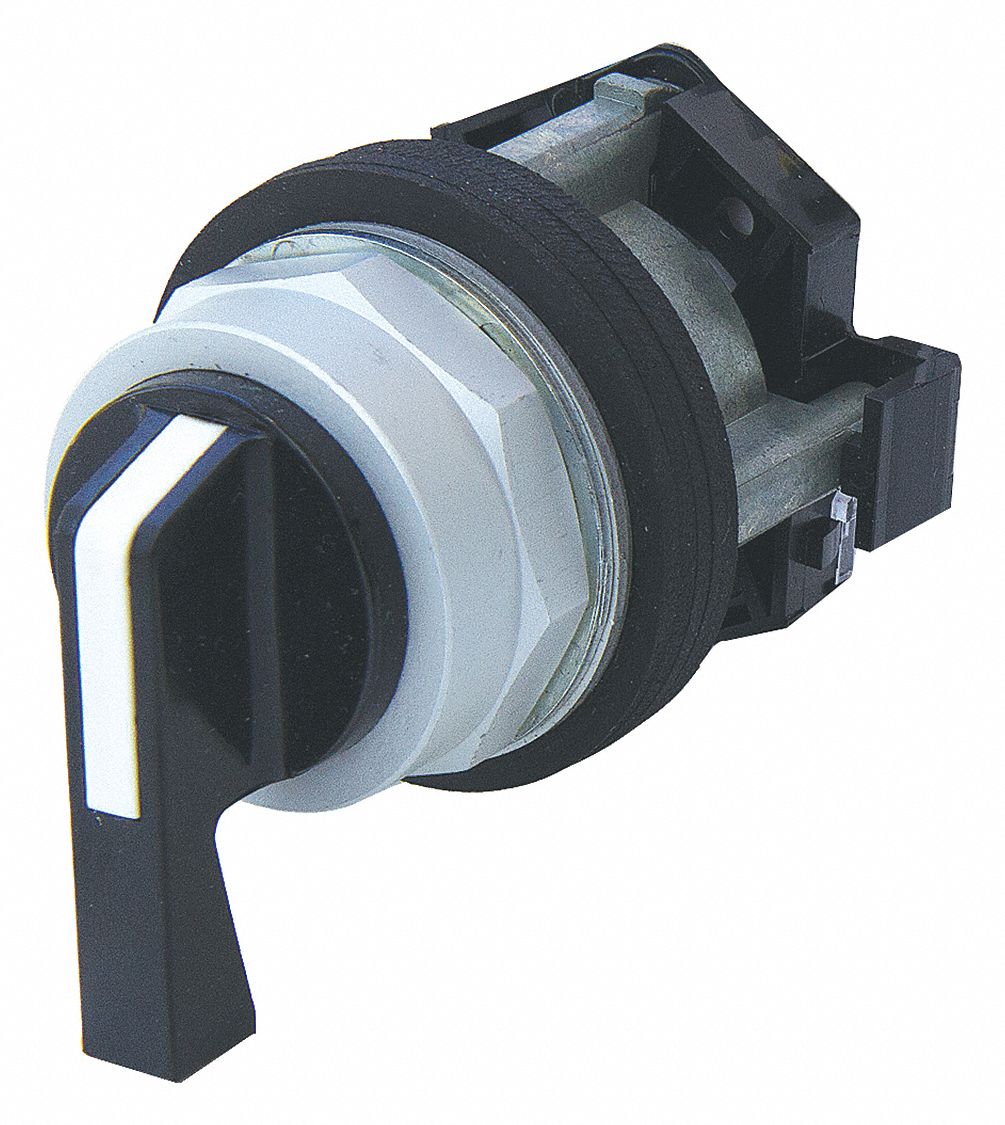

The EATON HT800 Series Selector Switch (MPN HT8JSH1DF1Q1) is a 30 mm panel-mounting, non-illuminated selector switch with a polymer long-handled knob and metallic bezel. It features a 3-position, momentary/maintained/maintained action with a 1D cam, offering AC contact rating of 10 A @ 600 V and DC contact rating of 5 A @ 250 V. The switch functions are On at the first, second, and third positions, with no fourth position, and it is not rated for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| Cam | 1D |
| Type | Extended Lever, 2NC/2NO, Metallic |
| Brand | EATON |
| Action | Momentary/Maintained/Maintained |
| Series | HT800 |
| Positions | 3 |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 250 V |
| Operator Head Type | Long-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Operator Head Material | Polymer |
| Manufacturer Part Number | HT8JSH1DF1Q1 |
| Switch Bezel Material Type | Metallic |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
