EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever - Selector Switches
EATONSelector Switches

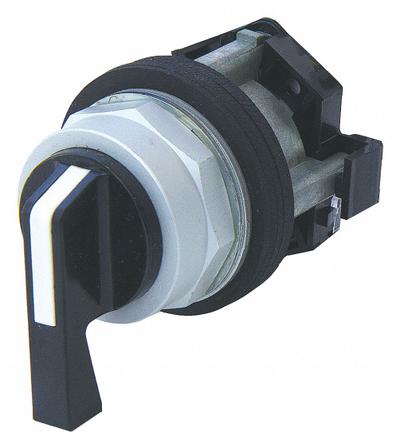

EATON Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever

The EATON HT800 Series Selector Switch (MPN HT8JSH1DF1Q1) is a 30 mm panel-mounting, non-illuminated selector switch with a polymer long-handled knob and metallic bezel. It features a 3-position…

SKU 3G-OTH-36976

Brand
EATON
Item
Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever
Category
Selector Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
HT8JSH1DF1Q1
Series
HT800
Type
Extended Lever, 2NC/2NO, Metallic
Cam
1D
Action
Momentary/Maintained/Maintained
Positions
3
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V
Operator Head Type
Long-Handled Knob
Operator Illumination
Non-Illuminated
Operator Head Material
Polymer
Switch Bezel Material Type
Metallic
Switch Function @ 1st Position
On
Switch Function @ 2nd Position
On
Switch Function @ 3rd Position
On
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON HT800 Series Selector Switch (MPN HT8JSH1DF1Q1) is a 30 mm panel-mounting, non-illuminated selector switch with a polymer long-handled knob and metallic bezel. It features a 3-position, momentary/maintained/maintained action with a 1D cam, offering AC contact rating of 10 A @ 600 V and DC contact rating of 5 A @ 250 V. The switch functions are On at the first, second, and third positions, with no fourth position, and it is not rated for hazardous locations.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON selector switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
