Climax Metal Products 3G-OTH-118849 — Technical Specifications

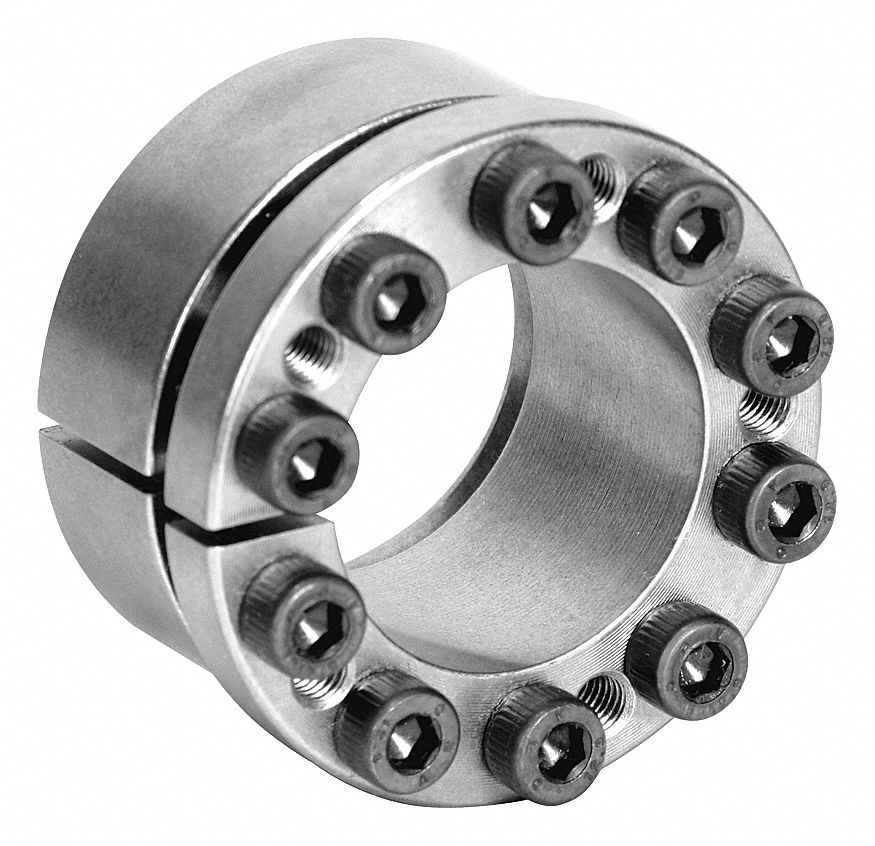

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly type bushing designed for a 22 mm shaft diameter, with a 1 9/16 in outer diameter and 30 mm width (MPN C193M-22). This metric-system component provides a keyless shaft-to-hub connection via its multi-screw locking mechanism.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 1 9/16 in |
| Wd | 30 mm |
| Type | For 22 mm Shaft Dia |
| Brand | CLIMAX METAL PRODUCTS |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Metric |
| Manufacturer Part Number | C193M-22 |
