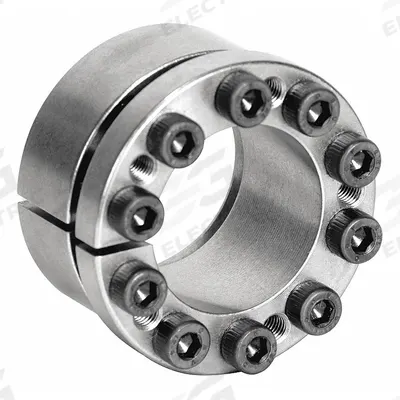

CLIMAX METAL PRODUCTS Keyless Bushing: Flanged, For 22 mm Shaft Dia, 1 9/16 in OD - Multi-Screw Locking Assembly Keyless Bushings
CLIMAX METAL PRODUCTSMulti-Screw Locking Assembly Keyless Bushings

CLIMAX METAL PRODUCTS Keyless Bushing: Flanged, For 22 mm Shaft Dia, 1 9/16 in OD

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly type bushing designed for a 22 mm shaft diameter, with a 1 9/16 in outer diameter and 30 mm width (MPN C193M-22). This…

SKU 3G-OTH-118849

Brand
CLIMAX METAL PRODUCTS
Item
Keyless Bushing: Flanged, For 22 mm Shaft Dia, 1 9/16 in OD
Category
Multi-Screw Locking Assembly Keyless Bushings
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

CLIMAX METAL PRODUCTS
Manufacturer Part Number
C193M-22
Type
For 22 mm Shaft Dia
OD
1 9/16 in
Wd
30 mm
Flange Type
Flanged
Keyless Bushing Type
Multi-Screw Locking Assembly
System of Measurement
Metric
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

CLIMAX METAL PRODUCTS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The CLIMAX METAL PRODUCTS Keyless Bushing is a flanged, multi-screw locking assembly type bushing designed for a 22 mm shaft diameter, with a 1 9/16 in outer diameter and 30 mm width (MPN C193M-22). This metric-system component provides a keyless shaft-to-hub connection via its multi-screw locking mechanism.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a CLIMAX METAL PRODUCTS keyless bushing used for?

A CLIMAX METAL PRODUCTS keyless bushing provides a shaft-to-hub connection without keys or keyways. It is used in industrial power transmission applications where precise positioning, zero backlash, and easy installation or removal are required, such as in conveyors, pumps, and gearboxes.

What are the specifications of the CLIMAX METAL PRODUCTS C193M-22 keyless bushing?

The CLIMAX METAL PRODUCTS C193M-22 is a flanged, multi-screw locking assembly keyless bushing. It fits a 22 mm shaft diameter, has a 1 9/16 in outer diameter, and a 30 mm width. It uses a metric system of measurement and is designed for keyless shaft-to-hub connections.

Where to buy CLIMAX METAL PRODUCTS keyless bushings worldwide?

3G Electric supplies CLIMAX METAL PRODUCTS keyless bushings worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time on the C193M-22 or other models.

How to install a CLIMAX METAL PRODUCTS keyless bushing?

To install a CLIMAX METAL PRODUCTS keyless bushing, clean the shaft and hub bore, then slide the bushing onto the shaft. Tighten the multi-screws evenly in a crisscross pattern to the manufacturer's recommended torque. This creates a friction lock without keys, ensuring concentric mounting and easy removal.

Used in

Common applications for CLIMAX METAL PRODUCTS
Conveyor systems — CLIMAX clamp-on shaft collars (e.g., MPN 1C-225) for positioning and retaining pulleys on drive shafts.
Pump drives — CLIMAX single-nut keyless bushings (e.g., MPN C801M-050) for mounting impellers without keyways.
Gearbox output shafts — CLIMAX multi-screw keyless bushings (e.g., MPN C200M-55X85) for high-torque transmission.
Packaging machinery — CLIMAX stainless steel recessed-screw collars (e.g., MPN H1C-318-S) for washdown environments.
Material handling equipment — CLIMAX rigid shaft couplings (e.g., MPN ISCC-050-050-S) for connecting motor and gearbox shafts.
Industrial fans — CLIMAX aluminum shaft collars (e.g., MPN C-175-A) for lightweight shaft positioning in fan assemblies.
