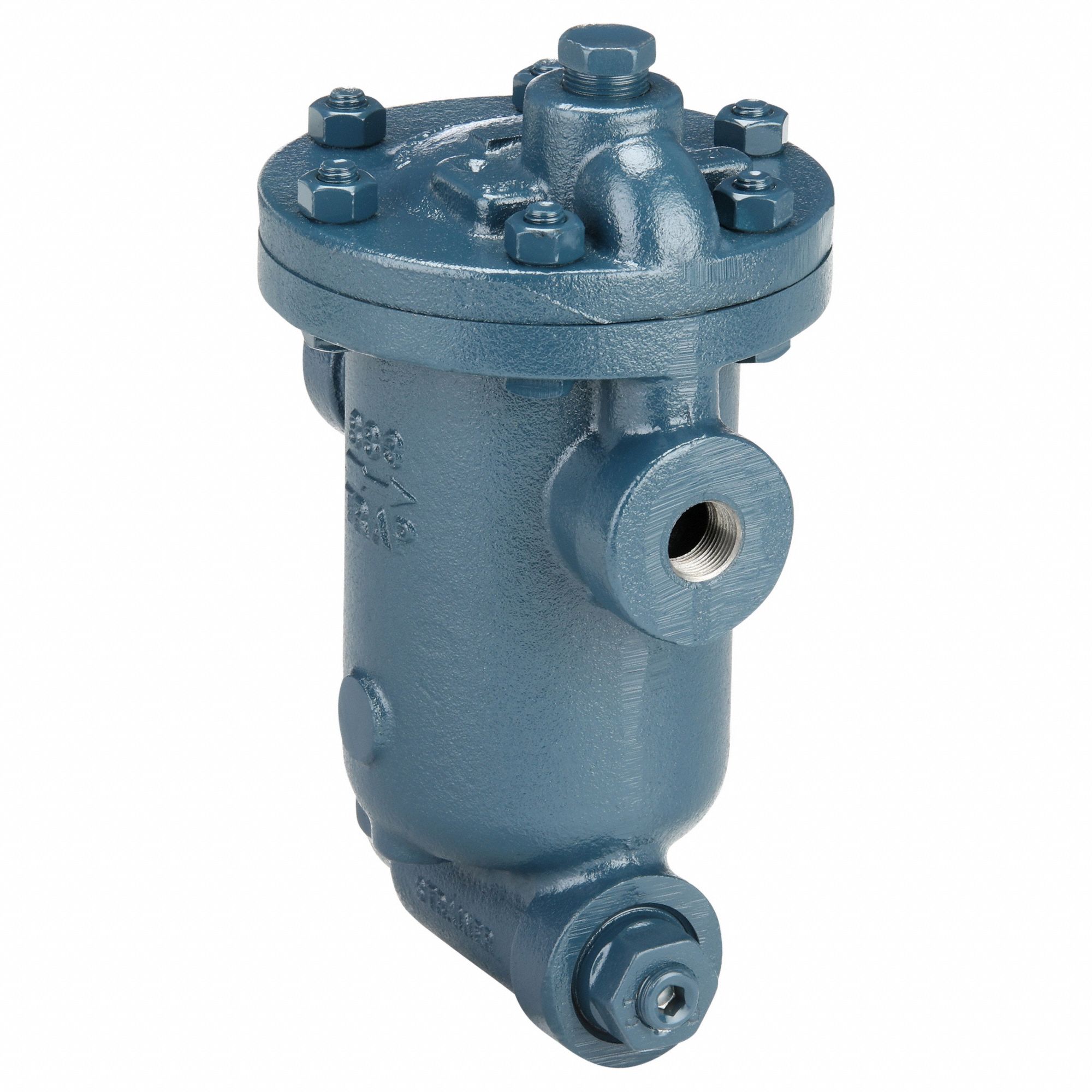

Armstrong International 3G-OTH-70567 — Technical Specifications

Name: Armstrong International 3G-OTH-70567 Steam Trap: Cast Iron, 3/4 in FNPT, 3,500 lb/hr, 250 psi Max., 450°F Max., Strainer Included (MPN 883-075-250). Key specifications — Installation Orientation: Horizontal; Brand: ARMSTRONG INTERNATIONAL; Configuration: In-line.
Brand: Armstrong International

The ARMSTRONG INTERNATIONAL Standard Inverted-Bucket Steam Trap is a cast-iron, in-line steam trap with a 3/4 in FNPT connection, rated for 3,500 lb/hr capacity, 250 psi maximum pressure, and 450°F maximum temperature. It is designed for horizontal installation and includes a built-in strainer.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	3/4 in
Max.	250 psi
Type	3,500 lb/hr, Strainer Included
Brand	ARMSTRONG INTERNATIONAL
Configuration	In-line
Installation Orientation	Horizontal
Manufacturer Part Number	883-075-250
