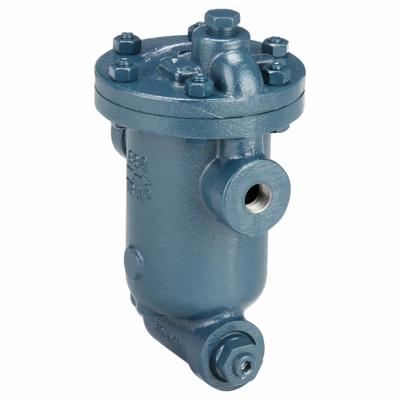

ARMSTRONG INTERNATIONAL Steam Trap: Cast Iron, 3/4 in FNPT, 3,500 lb/hr, 250 psi Max., 450°F Max. - Standard Inverted-Bucket Steam Traps
ARMSTRONG INTERNATIONALStandard Inverted-Bucket Steam Traps

ARMSTRONG INTERNATIONAL Steam Trap: Cast Iron, 3/4 in FNPT, 3,500 lb/hr, 250 psi Max., 450°F Max.

The ARMSTRONG INTERNATIONAL Standard Inverted-Bucket Steam Trap is a cast-iron, in-line steam trap with a 3/4 in FNPT connection, rated for 3,500 lb/hr capacity, 250 psi maximum pressure, and 450°F maximum…

SKU 3G-OTH-70567

Brand
ARMSTRONG INTERNATIONAL
Item
Steam Trap: Cast Iron, 3/4 in FNPT, 3,500 lb/hr, 250 psi Max., 450°F Max.
Category
Standard Inverted-Bucket Steam Traps
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

ARMSTRONG INTERNATIONAL
Manufacturer Part Number
883-075-250
Type
3,500 lb/hr, Strainer Included
FNPT
3/4 in
Max.
250 psi
Configuration
In-line
Installation Orientation
Horizontal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

ARMSTRONG INTERNATIONAL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The ARMSTRONG INTERNATIONAL Standard Inverted-Bucket Steam Trap is a cast-iron, in-line steam trap with a 3/4 in FNPT connection, rated for 3,500 lb/hr capacity, 250 psi maximum pressure, and 450°F maximum temperature. It is designed for horizontal installation and includes a built-in strainer.

Used in

Common applications for ARMSTRONG INTERNATIONAL
Chemical processing — Armstrong International inverted-bucket steam traps (e.g., 882-050-125) for condensate removal from heat exchangers.
Food and beverage — Armstrong International corrosion-resistant steam traps (e.g., 1811-050-200) for steam tracing on sanitary lines.
Refining — Armstrong International high-pressure steam traps (e.g., 1822-100-650) for process steam mains.
Commercial HVAC — Armstrong International steam spargers (e.g., MS6-1-1/4") for hot water generation in boiler systems.
Pharmaceutical — Armstrong International stainless-steel steam traps (e.g., 1811-050-400) for clean steam applications.
Power generation — Armstrong International cast-iron steam traps (e.g., 883-075-250) for turbine drain lines.

ARMSTRONG INTERNATIONAL Products

3G Electric supplies ARMSTRONG INTERNATIONAL standard inverted-bucket steam traps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
