Appleton Electric 3G-OTH-06486 — Technical Specifications

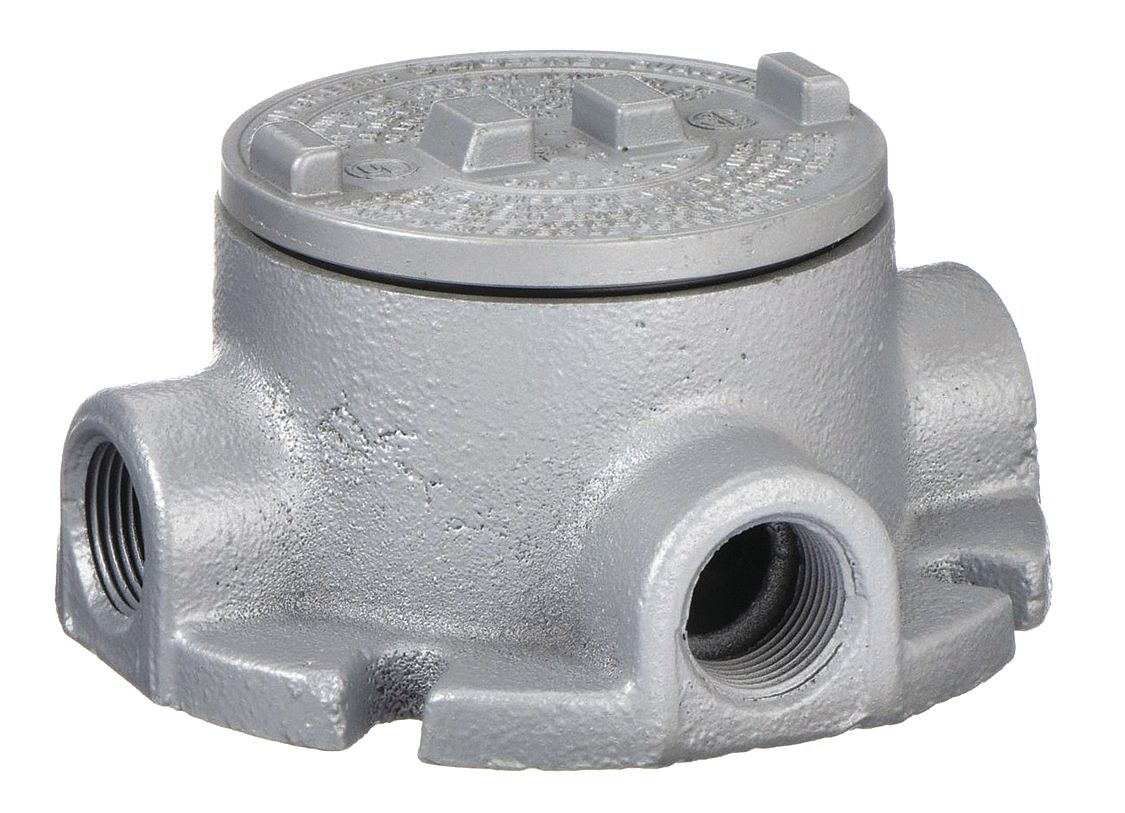

The Appleton Electric GRFX100 is an iron conduit outlet body with a Triple Coat Epoxy Coating, part of the For Standard Body series. This X-style body has a 1 in trade size, 18 cu in capacity, threaded female hubs, and a flat back, designed for use with threaded IMC. It includes a cover, is flanged, and meets CSA C22.2 No. 25 standards for hazardous locations.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | APPLETON ELECTRIC |
| Finish | Triple Coat Epoxy Coating |
| Series | For Standard Body |
| Material | Iron |
| Back Type | Flat |
| Body Type | Conduit Outlet Body |
| Hub Style | Threaded |
| Standards | CSA C22.2 No. 25 |
| Body Style | X |
| For Use With | Threaded IMC |
| Thread Gender | Female |
| Cover Included | Yes |
| Connection Type | Threaded |
| Special Features | Flanged |
| Hazardous Location | Yes |
| Manufacturer Part Number | GRFX100 |
| Compatible Conduit Trade Size | 1 in |
