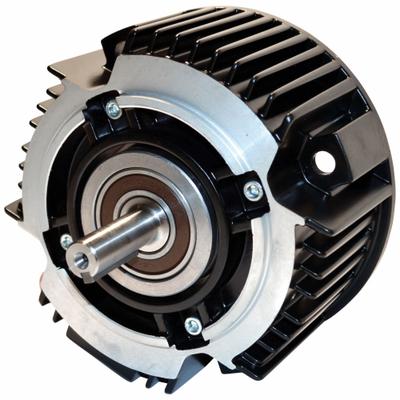

WARNER ELECTRIC C-Face Brake: C-Face Magnetic Disc, 24V DC, 24V DC, 24V DC - Brakes

WARNER ELECTRIC C-Face Brake: C-Face Magnetic Disc, 24V DC, 24V DC, 24V DC

The WARNER ELECTRIC C-Face Brake is a C-Face Magnetic Disc brake designed for use with NEMA C-Face motors and reducers. This vented enclosure brake operates on 24V DC and includes mounting hardware. It mounts on a…

SKU 3G-OTH-114400

Brand
WARNER ELECTRIC
Item
C-Face Brake: C-Face Magnetic Disc, 24V DC, 24V DC, 24V DC
Category
Brakes
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WARNER ELECTRIC
Manufacturer Part Number
EM50-20-24
Type
Vented
DC
24V
Includes
Mounting Hardware
Shaft Dia
5/8 in
For Use With
NEMA C-Face Motor/Reducer
Enclosure Type
Vented
Clutch/Brake Type
C-Face Magnetic Disc
Mounting Location
NEMA C-face Motor or Reducer or Base Mounted
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WARNER ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WARNER ELECTRIC C-Face Brake is a C-Face Magnetic Disc brake designed for use with NEMA C-Face motors and reducers. This vented enclosure brake operates on 24V DC and includes mounting hardware. It mounts on a NEMA C-face motor, reducer, or base, and accommodates a 5/8 in shaft diameter (MPN EM50-20-24).

Used in

Common applications for WARNER ELECTRIC
Material handling conveyors — Warner Electric UM series motor-mounted clutches for start-stop control
Packaging machinery — Warner Electric EP-500 combined clutch/brake unit for indexing and tension control
Machine tool spindles — Warner Electric C-face clutches (UM100-1040) for engagement with NEMA C-face motors
Automated assembly lines — Warner Electric CBC-150 controls for precise 90V DC clutch/brake actuation
Printing presses — Warner Electric mounting kits (5370-101-078) for retrofitting UM-50/UM-100 brakes
Textile equipment — Warner Electric cover kits (5370-101-076) for protecting UM-100 brake conduit boxes

WARNER ELECTRIC Products

3G Electric supplies WARNER ELECTRIC brakes. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
