WARNER ELECTRIC Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque - Combined Clutch & Brake Units
WARNER ELECTRICCombined Clutch & Brake Units

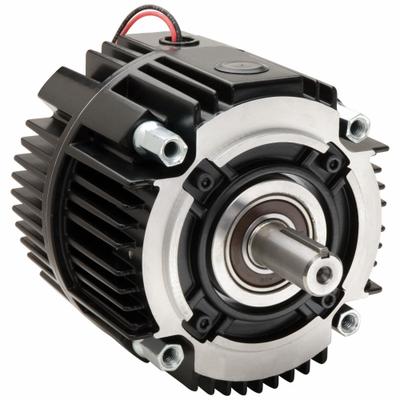

WARNER ELECTRIC Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque

The WARNER ELECTRIC UM100-1020-24 is a 24V DC combined clutch and brake unit designed for use with NEMA C-Face motors and reducers. It features a vented enclosure, mounts directly to a 56C NEMA motor frame or between…

SKU 3G-OTH-110119

Brand
WARNER ELECTRIC
Item
Clutch/Brake: 24V DC, 24V DC, 24V DC, Vented, 30 ft-lb Static Torque
Category
Combined Clutch & Brake Units
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

WARNER ELECTRIC
Manufacturer Part Number
UM100-1020-24
Type
Vented, 30 ft-lb Static Torque
DC
24V
NEMA
56C
Includes
Mounting Hardware
For Use With
NEMA C-Face Motor/Reducer
Enclosure Type
Vented
Mounting Location
NEMA C-Face Motor or Between Motor and Reducer
Motor Frame Designation
56C NEMA
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

WARNER ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The WARNER ELECTRIC UM100-1020-24 is a 24V DC combined clutch and brake unit designed for use with NEMA C-Face motors and reducers. It features a vented enclosure, mounts directly to a 56C NEMA motor frame or between the motor and reducer, and includes mounting hardware. This unit delivers 30 ft-lb of static torque.
