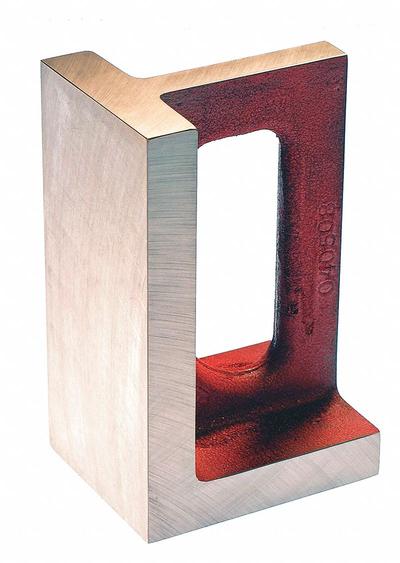

SUBURBAN Angle Plate: Cast Iron, 5 1/2 in L x 8 in W x 10 in H, 0.0005 in Square & Parallel - Universal Right-Angle Irons
SUBURBANUniversal Right-Angle Irons

SUBURBAN Angle Plate: Cast Iron, 5 1/2 in L x 8 in W x 10 in H, 0.0005 in Square & Parallel

The SUBURBAN Angle Plate is a universal right-angle iron made of cast iron, measuring 5 1/2 in L x 8 in W x 10 in H. It features a square and parallel tolerance of 0.0005 in and a ground finish with a 0.00025 in…

SKU 3G-OTH-207708

Brand
SUBURBAN
Item
Angle Plate: Cast Iron, 5 1/2 in L x 8 in W x 10 in H, 0.0005 in Square & Parallel
Category
Universal Right-Angle Irons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SUBURBAN
Manufacturer Part Number
URA-050810-G
Type
Ground
H
5 1/2 in L x 8 in W x 10 in
Square & Parallel
0.0005 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SUBURBAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SUBURBAN Angle Plate is a universal right-angle iron made of cast iron, measuring 5 1/2 in L x 8 in W x 10 in H. It features a square and parallel tolerance of 0.0005 in and a ground finish with a 0.00025 in specification. This product is identified by manufacturer part number URA-050810-G.

Used in

Common applications for SUBURBAN
Surface grinding setup — SUBURBAN magnetic sine plates (e.g., MSP-126-S2) for angular workpiece positioning
Inspection and quality control — SUBURBAN steel straight edges (e.g., SE-12-TS) for checking flatness of machine tables
Toolroom fixturing — SUBURBAN slotted cast iron angle plates (e.g., SAW-120908) for holding workpieces during milling
Compound angle machining — SUBURBAN compound sine plates (e.g., SPC-1212-S2) for multi-axis angular setups
Precision grinding of small parts — SUBURBAN hardened steel angle plates (e.g., AP-334-S0) with 0.0002 in tolerance for tight-tolerance workholding

SUBURBAN Products

3G Electric supplies SUBURBAN universal right-angle irons. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
