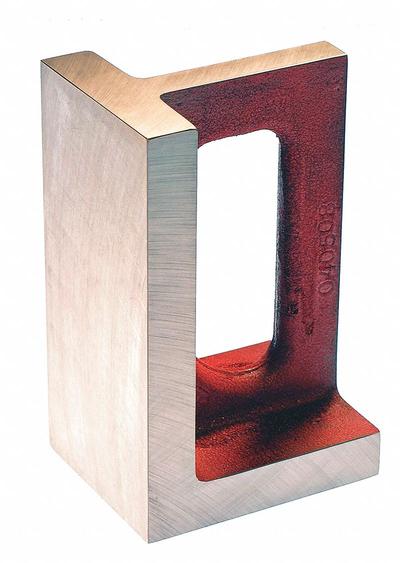

SUBURBAN Angle Plate: Cast Iron, 3 3/4 in L x 4 in W x 5 in H, 0.002 in Square & Parallel - Universal Right-Angle Irons
SUBURBANUniversal Right-Angle Irons

SUBURBAN Angle Plate: Cast Iron, 3 3/4 in L x 4 in W x 5 in H, 0.002 in Square & Parallel

The SUBURBAN Angle Plate is a universal right-angle iron made of cast iron, measuring 3 3/4 in L x 4 in W x 5 in H. It features a square and parallel tolerance of 0.002 in, as specified by the manufacturer. This…

SKU 3G-OTH-207698

Brand
SUBURBAN
Item
Angle Plate: Cast Iron, 3 3/4 in L x 4 in W x 5 in H, 0.002 in Square & Parallel
Category
Universal Right-Angle Irons
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SUBURBAN
Manufacturer Part Number
URA-030405
Type
Machined
H
3 3/4 in L x 4 in W x 5 in
Square & Parallel
0.002 in
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SUBURBAN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SUBURBAN Angle Plate is a universal right-angle iron made of cast iron, measuring 3 3/4 in L x 4 in W x 5 in H. It features a square and parallel tolerance of 0.002 in, as specified by the manufacturer. This machined component is designed for precision alignment in industrial setups.

Used in

Common applications for SUBURBAN
Surface grinding setup — SUBURBAN magnetic sine plates (e.g., MSP-126-S2) for angular workpiece positioning
Inspection and quality control — SUBURBAN steel straight edges (e.g., SE-12-TS) for checking flatness of machine tables
Toolroom fixturing — SUBURBAN slotted cast iron angle plates (e.g., SAW-120908) for holding workpieces during milling
Compound angle machining — SUBURBAN compound sine plates (e.g., SPC-1212-S2) for multi-axis angular setups
Precision grinding of small parts — SUBURBAN hardened steel angle plates (e.g., AP-334-S0) with 0.0002 in tolerance for tight-tolerance workholding

SUBURBAN Products

3G Electric supplies SUBURBAN universal right-angle irons. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
