SCHNEIDER Thermal overload relay: Electronic Protection, 3 Poles, 1NO/1NC - IEC Electronic Overload Relays
SCHNEIDERIEC Electronic Overload Relays

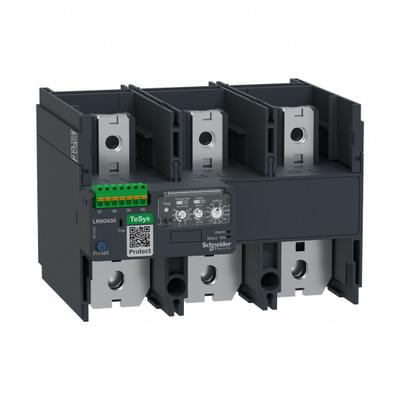

SCHNEIDER Thermal overload relay: Electronic Protection, 3 Poles, 1NO/1NC

The SCHNEIDER LR9G630 is an IEC Electronic Overload Relay from the TeSys Giga series, offering electronic protection with Trip Class 5E/30E. It features 1NO/1NC auxiliary contacts, box lug terminals, a maximum…

SKU 3G-OTH-45121

Brand
SCHNEIDER
Item
Thermal overload relay: Electronic Protection, 3 Poles, 1NO/1NC
Category
IEC Electronic Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
LR9G630
Type
1NO/1NC, Phase Loss Sensitivity
Poles
3
Trip Class
5E/30E
Compatible Contactors
TeSys Giga (160 to 630 Amp Models)
Auxiliary Contact Form
1NO/1NC
Maximum Voltage Rating
500V AC
Phase Loss Sensitivity
Yes
Thermal Units Required
Not Applicable to Electronic Type Overload Relays
Terminal Connection Type
Box Lugs
Compatible Contactor Series
TeSys Giga
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER LR9G630 is an IEC Electronic Overload Relay from the TeSys Giga series, offering electronic protection with Trip Class 5E/30E. It features 1NO/1NC auxiliary contacts, box lug terminals, a maximum voltage rating of 500V AC, and phase loss sensitivity. This relay is compatible with TeSys Giga contactors (160 to 630 Amp models) and does not require thermal units.
