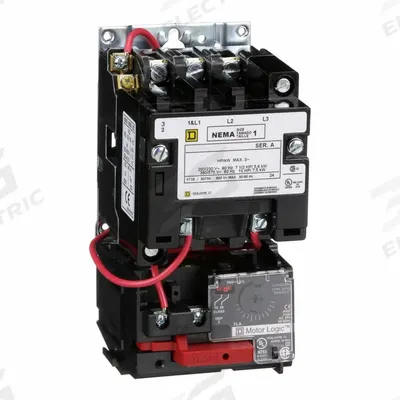

SCHNEIDER Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A - Non-Reversing Starters with Electronic Overloads
SCHNEIDERNon-Reversing Starters with Electronic Overloads

SCHNEIDER Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A

The SCHNEIDER NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, designed for three-phase applications. This NEMA Size 1 unit is rated for 27 A and features a 120V AC coil voltage, with…

SKU 3G-OTH-41878

Brand
SCHNEIDER
Item
Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A
Category
Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8536SCO3V02H309S
Type
NEMA Size 1, 27 A
Phase
Three
Poles
3
AC Coil
120V
Operator
None
Coil Voltage
120V AC
Operator Controls
None
Includes Pilot Light
No
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Terminal Connection Type
Screw Clamp Terminals
Auxiliary Contacts Included
No Auxiliary Contacts Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, designed for three-phase applications. This NEMA Size 1 unit is rated for 27 A and features a 120V AC coil voltage, with screw clamp terminals and no auxiliary contacts or operator controls.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER NEMA Magnetic Motor Starter used for?

The SCHNEIDER NEMA Magnetic Motor Starter is used to start and stop three-phase motors in industrial applications. It provides overload protection via its electronic overloads, making it suitable for pumps, conveyors, and compressors in manufacturing and processing plants.

What are the specifications of the SCHNEIDER 8536SCO3V02H309S motor starter?

This SCHNEIDER motor starter is a non-reversing, NEMA Size 1 unit rated for 27 A with a 120V AC coil voltage. It features three poles, screw clamp terminals, and electronic overloads. No auxiliary contacts, pilot light, or operator controls are included.

Where to buy the SCHNEIDER NEMA Size 1 motor starter worldwide?

You can source the SCHNEIDER NEMA Size 1 motor starter from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring reliable supply for your operations.

How to select the correct thermal units for the SCHNEIDER 8536SCO3V02H309S starter?

This SCHNEIDER starter uses electronic overloads, so no separate thermal units are required. For selection, match the motor full-load current to the starter's 27 A rating and ensure the 120V AC coil voltage matches your control circuit. Consult the motor nameplate for precise settings.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER non-reversing starters with electronic overloads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
