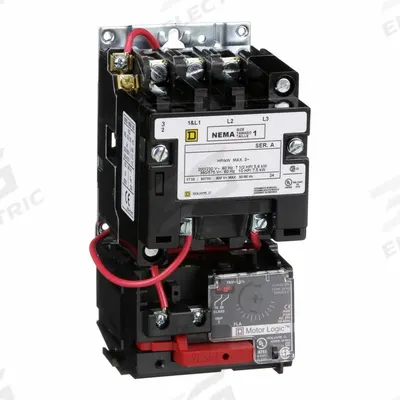

SCHNEIDER Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A - Non-Reversing Starters with Electronic Overloads
SCHNEIDERNon-Reversing Starters with Electronic Overloads

SCHNEIDER Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A

The SCHNEIDER NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, designed for three-phase applications. This NEMA Size 1 unit features a 27 A rating and a 120V AC coil, with screw clamp…

SKU 3G-OTH-41813

Brand
SCHNEIDER
Item
Magnetic Motor Starter: Non-Reversing, 3 Poles, NEMA Size 1, 27 A
Category
Non-Reversing Starters with Electronic Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8536SCO3V02H308S
Type
NEMA Size 1, 27 A
Phase
Three
Poles
3
AC Coil
120V
Operator
None
Coil Voltage
120V AC
Operator Controls
None
Includes Pilot Light
No
Thermal Units Required
None (Not Applicable to Electronic Overloads)
Terminal Connection Type
Screw Clamp Terminals
Auxiliary Contacts Included
No Auxiliary Contacts Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, designed for three-phase applications. This NEMA Size 1 unit features a 27 A rating and a 120V AC coil, with screw clamp terminals for secure wiring. It includes no operator controls, pilot light, or auxiliary contacts, and requires no thermal units due to its electronic overload design.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER NEMA Magnetic Motor Starter used for?

This SCHNEIDER non-reversing magnetic motor starter is used to start and stop three-phase AC motors in industrial applications such as conveyors, pumps, and fans. It provides overload protection via its electronic overload relay, making it suitable for automated machinery where reliable motor control is required.

What are the specifications of the SCHNEIDER 8536SCO3V02H308S motor starter?

The SCHNEIDER 8536SCO3V02H308S is a NEMA Size 1, non-reversing magnetic motor starter rated for 27 A with a 120V AC coil. It is designed for three-phase operation, uses screw clamp terminals, and includes an electronic overload that eliminates the need for thermal units. No auxiliary contacts or pilot light are included.

Where to buy SCHNEIDER motor starters worldwide?

You can source the SCHNEIDER 8536SCO3V02H308S motor starter from 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine SCHNEIDER components for industrial motor control applications.

How to select the right NEMA size for a SCHNEIDER motor starter?

Selecting the correct NEMA size for a SCHNEIDER motor starter depends on the motor's full-load current and voltage. NEMA Size 1, as in this 27 A model, typically covers motors up to 7.5 HP at 230V or 10 HP at 460V. Always match the starter's ampere rating to the motor nameplate and consider the coil voltage (here 120V AC) for your control circuit.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER non-reversing starters with electronic overloads. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
