SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 1NC, Momentary - Contact Blocks
SCHNEIDERContact Blocks

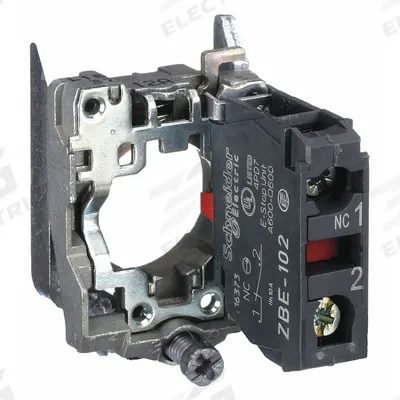

SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 1NC, Momentary

The SCHNEIDER Contact Block, part of the ZB4 Series (MPN ZB4BZ102), is a 22 mm panel mounting size momentary switch block with 1NC contact configuration. It features screw clamp terminals for secure wiring…

SKU 3G-OTH-32361

Brand
SCHNEIDER
Item
Contact Block: 22 mm Panel Mounting Size, 1NC, Momentary
Category
Contact Blocks
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BZ102
Switch Action
Momentary
Compatible with Series
ZB4
Terminal Connection Type
Screw Clamp Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Contact Block, part of the ZB4 Series (MPN ZB4BZ102), is a 22 mm panel mounting size momentary switch block with 1NC contact configuration. It features screw clamp terminals for secure wiring connections. This contact block is designed for integration with SCHNEIDER ZB4 series pilot devices.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER ZB4BZ102 contact block used for?

The SCHNEIDER ZB4BZ102 contact block is used as a momentary switching component in industrial control panels. It integrates with ZB4 series pilot devices for applications like machine start/stop, emergency stop, and selector switch functions in manufacturing, process control, and automation systems.

What are the specifications of the SCHNEIDER ZB4BZ102 contact block?

The SCHNEIDER ZB4BZ102 is a 22 mm panel mounting size contact block with 1NC contact configuration and momentary switch action. It uses screw clamp terminals for secure wiring. This block is compatible with the SCHNEIDER ZB4 series pilot devices and carries MPN ZB4BZ102.

Where to buy the SCHNEIDER ZB4BZ102 contact block worldwide?

You can source the SCHNEIDER ZB4BZ102 contact block through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this ZB4 series component.

How to install the SCHNEIDER ZB4BZ102 contact block?

To install the SCHNEIDER ZB4BZ102, mount it on a 22 mm panel cutout, secure it with the provided locking ring, and connect wires using the screw clamp terminals. Ensure the 1NC contact aligns with your circuit design. Follow standard electrical safety practices and torque specifications for screw terminals.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
