SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 1NO, Momentary - Contact Blocks
SCHNEIDERContact Blocks

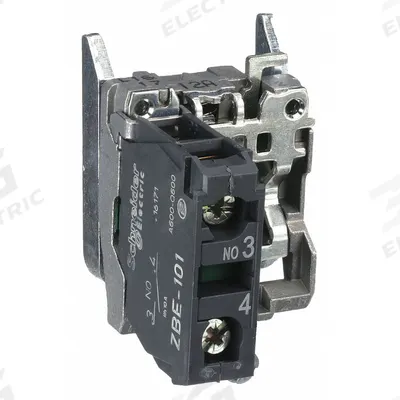

SCHNEIDER Contact Block: 22 mm Panel Mounting Size, 1NO, Momentary

The SCHNEIDER ZB4BZ101 is a momentary contact block from the ZB4 series, featuring a 22 mm panel mounting size and 1 normally open (1NO) configuration. It utilizes screw clamp terminals for secure wiring connections…

SKU 3G-OTH-31714

Brand
SCHNEIDER
Item
Contact Block: 22 mm Panel Mounting Size, 1NO, Momentary
Category
Contact Blocks
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
ZB4BZ101
Switch Action
Momentary
Compatible with Series
ZB4
Terminal Connection Type
Screw Clamp Terminals
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER ZB4BZ101 is a momentary contact block from the ZB4 series, featuring a 22 mm panel mounting size and 1 normally open (1NO) configuration. It utilizes screw clamp terminals for secure wiring connections. This component is designed for integration with SCHNEIDER's ZB4 series operator units.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER ZB4BZ101 contact block used for?

The SCHNEIDER ZB4BZ101 is a momentary contact block used in industrial control panels for signaling and switching applications. It mounts to a 22 mm panel cutout and provides one normally open (1NO) circuit, commonly paired with pushbuttons or selector switches in the ZB4 series.

What are the specifications of the SCHNEIDER ZB4BZ101?

The SCHNEIDER ZB4BZ101 is a momentary contact block with a 22 mm panel mounting size and 1 normally open (1NO) configuration. It uses screw clamp terminals for secure wiring and is compatible with the ZB4 series operator units. The switch action is momentary, meaning it returns to its default state when released.

Where to buy the SCHNEIDER ZB4BZ101 worldwide?

3G Electric supplies the SCHNEIDER ZB4BZ101 contact block to customers worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your location. Contact us for pricing and lead time on this ZB4 series component.

How to install the SCHNEIDER ZB4BZ101 contact block?

To install the SCHNEIDER ZB4BZ101, mount it to a 22 mm panel cutout and secure it with the appropriate locking ring. Connect wires to the screw clamp terminals using a suitable screwdriver, ensuring tight connections. Always follow standard electrical safety practices and consult the manufacturer's documentation for torque specifications.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
