SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, NEMA Size 4 - NEMA Thermal Overload Relays
SCHNEIDERNEMA Thermal Overload Relays

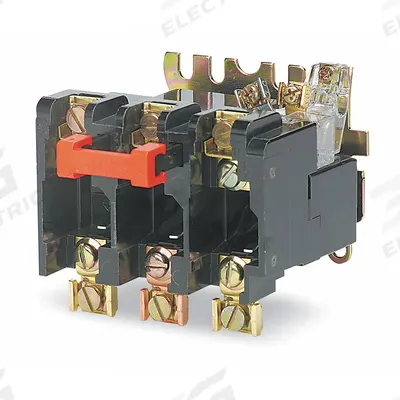

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, NEMA Size 4

The SCHNEIDER NEMA Overload Relay (MPN 9065SDO15) is a three-phase, NEMA Size 4 thermal overload relay rated for 135 A and a maximum voltage of 600V AC. It uses melting alloy overload protection and requires three…

SKU 3G-OTH-41064

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, NEMA Size 4
Category
NEMA Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9065SDO15
Phase
Three
Includes Thermal Units
No
Maximum Voltage Rating
600V AC
Thermal Units Required
3 Thermal (Heater) Units (Sold Separately)
Overload Protection Type
Melting Alloy
Compatible Contactor Series
9065 Motor Logic Solid State Overload Relays
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER NEMA Overload Relay (MPN 9065SDO15) is a three-phase, NEMA Size 4 thermal overload relay rated for 135 A and a maximum voltage of 600V AC. It uses melting alloy overload protection and requires three thermal (heater) units, sold separately, for operation. This relay is compatible with the 9065 Motor Logic Solid State Overload Relays contactor series.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER 9065SDO15 NEMA overload relay used for?

The SCHNEIDER 9065SDO15 is a NEMA Size 4 thermal overload relay used to protect three-phase motors from overcurrent damage. It is commonly applied in industrial motor control centers and heavy machinery where reliable melting alloy protection is required up to 600V AC.

What are the specifications of the SCHNEIDER 9065SDO15 overload relay?

The SCHNEIDER 9065SDO15 is a three-phase NEMA Size 4 thermal overload relay rated for 135 A and a maximum voltage of 600V AC. It uses melting alloy overload protection and requires three thermal (heater) units, sold separately. It is compatible with the 9065 Motor Logic Solid State Overload Relays contactor series.

Where to buy the SCHNEIDER 9065SDO15 overload relay worldwide?

You can source the SCHNEIDER 9065SDO15 overload relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time on this melting alloy relay.

How to select thermal heater units for the SCHNEIDER 9065SDO15 relay?

To select thermal heater units for the SCHNEIDER 9065SDO15, you must choose three melting alloy heaters rated for the motor's full-load current. The heaters are sold separately and must match the motor's amperage and ambient temperature. Consult the SCHNEIDER heater selection table for the correct part numbers.
