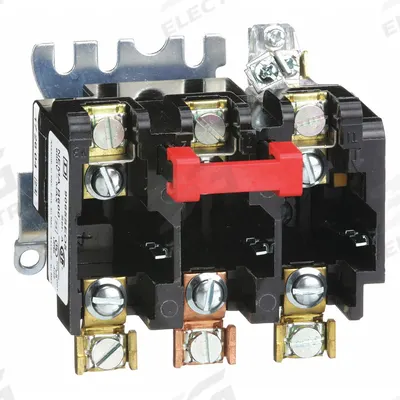

SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, NEMA Size 1

The SCHNEIDER NEMA Overload Relay (MPN 9065SEO5) is a three-pole, NEMA Size 1 thermal overload relay rated for 25 A and a maximum voltage of 600V AC. It uses melting alloy overload protection and requires three…

SKU 3G-OTH-40969

Brand
SCHNEIDER
Item
Overload Relay: Thermal Protection, 3 Poles, NEMA Size 1
Category
NEMA Thermal Overload Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9065SEO5
Phase
Three
Includes Thermal Units
No
Maximum Voltage Rating
600V AC
Thermal Units Required
3 Thermal (Heater) Units (Sold Separately)
Overload Protection Type
Melting Alloy
Compatible Contactor Series
9065 Motor Logic Solid State Overload Relays
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER NEMA Overload Relay (MPN 9065SEO5) is a three-pole, NEMA Size 1 thermal overload relay rated for 25 A and a maximum voltage of 600V AC. It uses melting alloy overload protection and requires three thermal (heater) units, sold separately, for operation. This relay is compatible with the 9065 Motor Logic Solid State Overload Relays series and is designed for three-phase applications.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the SCHNEIDER 9065SEO5 NEMA overload relay used for?

The SCHNEIDER 9065SEO5 NEMA overload relay protects three-phase motors from thermal damage due to overload or phase loss. It is used in industrial motor control applications with NEMA Size 1 contactors, providing melting alloy protection for equipment up to 600V AC and 25 A.

What are the specifications of the SCHNEIDER 9065SEO5 overload relay?

The SCHNEIDER 9065SEO5 is a three-pole NEMA Size 1 thermal overload relay rated for 25 A and 600V AC maximum. It uses melting alloy protection and requires three thermal heater units (sold separately). It is compatible with the 9065 Motor Logic Solid State Overload Relays series.

Where to buy the SCHNEIDER 9065SEO5 overload relay worldwide?

3G Electric supplies the SCHNEIDER 9065SEO5 overload relay worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us for availability and lead time; we source and deliver this relay to any country.

How to select thermal heater units for the SCHNEIDER 9065SEO5 relay?

To select thermal heater units for the SCHNEIDER 9065SEO5, match the heater's current rating to the motor's full-load amperage. The relay requires three heater units (sold separately) for three-phase operation. Consult the motor nameplate and SCHNEIDER's heater selection table to ensure proper thermal protection.
