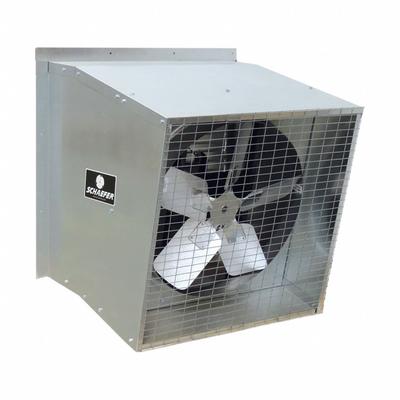

SCHAEFER Exhaust Fan: Belt Drive, 48 in Blade, 1 1/2 hp, Totally Enclosed, 24,000 cfm - Belt-Drive Slant-Wall Exhaust Fans

SCHAEFERBelt-Drive Slant-Wall Exhaust Fans

SCHAEFER Exhaust Fan: Belt Drive, 48 in Blade, 1 1/2 hp, Totally Enclosed, 24,000 cfm

The SCHAEFER 404PV1 is a belt-drive slant-wall exhaust fan with a 48-inch galvanized steel blade and a 1 1/2 hp totally enclosed motor. It operates at 24,000 cfm on a 208 to 230V AC, single-phase power supply. The…

SKU 3G-OTH-80722

Brand

SCHAEFER

Item

Exhaust Fan: Belt Drive, 48 in Blade, 1 1/2 hp, Totally Enclosed, 24,000 cfm

Category

Belt-Drive Slant-Wall Exhaust Fans

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

SCHAEFER

Manufacturer Part Number

485S112

Type

1 1/2 hp, Totally Enclosed, 24,000 cfm, 1 ph

AC

208 to 230V

Blade

48 in

Frame Finish

Galvanized

Blade Material

Galvanized Steel

Frame Material

Steel

Motor Enclosure

Totally Enclosed

Nameplate Voltage

208 to 230V AC

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

SCHAEFER Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHAEFER 404PV1 is a belt-drive slant-wall exhaust fan with a 48-inch galvanized steel blade and a 1 1/2 hp totally enclosed motor. It operates at 24,000 cfm on a 208 to 230V AC, single-phase power supply. The unit features a galvanized steel frame with a galvanized finish.
