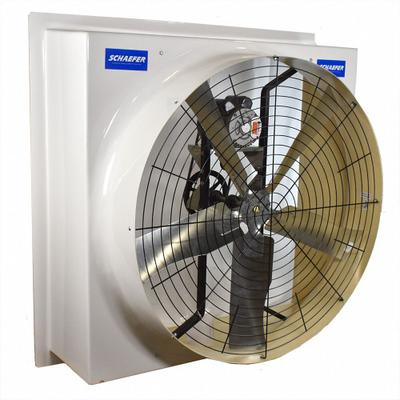

SCHAEFER Exhaust Fan: Belt Drive, 48 in Blade, 1 hp, Totally Enclosed Air Over, 23,391 cfm - Belt-Drive Slant-Wall Exhaust Fans
SCHAEFERBelt-Drive Slant-Wall Exhaust Fans

SCHAEFER Exhaust Fan: Belt Drive, 48 in Blade, 1 hp, Totally Enclosed Air Over, 23,391 cfm

The SCHAEFER Exhaust Fan: Belt Drive is a belt-drive slant-wall exhaust fan with a 48-inch blade and a 1 hp motor. It delivers 23,391 cfm and operates on 208 to 230/460V AC, three-phase power. The unit features a…

SKU 3G-OTH-80820

Brand
SCHAEFER
Item
Exhaust Fan: Belt Drive, 48 in Blade, 1 hp, Totally Enclosed Air Over, 23,391 cfm
Category
Belt-Drive Slant-Wall Exhaust Fans
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHAEFER
Manufacturer Part Number
FFM485G1-3
Type
1 hp, Totally Enclosed Air Over, 23,391 cfm, 3 ph
Blade
48 in
Frame Finish
Glossy
Frame Material
Fiberglass
Motor Enclosure
Totally Enclosed Air Over
Nameplate Voltage
208 to 230/460V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHAEFER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHAEFER Exhaust Fan: Belt Drive is a belt-drive slant-wall exhaust fan with a 48-inch blade and a 1 hp motor. It delivers 23,391 cfm and operates on 208 to 230/460V AC, three-phase power. The unit features a glossy fiberglass frame and a Totally Enclosed Air Over motor enclosure.
