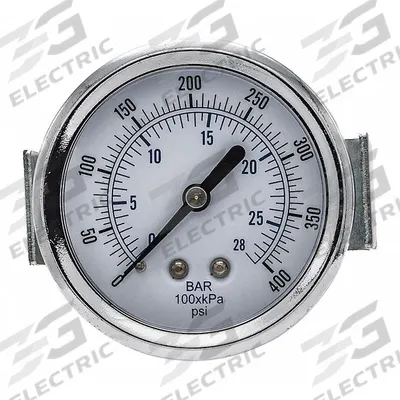

PIC GAUGES Industrial Pressure Gauge: 0 psi to 400 psi, 2 1/2 in Dial, 1/8 in NPT Male - U-Clamp Panel-Mount with Copper Wetted Parts
PIC GAUGESU-Clamp Panel-Mount with Copper Wetted Parts

PIC GAUGES Industrial Pressure Gauge: 0 psi to 400 psi, 2 1/2 in Dial, 1/8 in NPT Male

The PIC GAUGES Industrial Pressure Gauge (MPN 103D-258I) is a U-Clamp Panel-Mount gauge with a 0 psi to 400 psi range, a 2 1/2 in dial, and a 1/8 in NPT Male center back connection. It features copper wetted parts…

SKU 3G-OTH-175254

Brand
PIC GAUGES
Item
Industrial Pressure Gauge: 0 psi to 400 psi, 2 1/2 in Dial, 1/8 in NPT Male
Category
U-Clamp Panel-Mount with Copper Wetted Parts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

PIC GAUGES
Manufacturer Part Number
103D-258I
Type
Center Back
Dial
2 1/2 in
Accuracy
±3-2-3%
NPT Male
1/8 in
Gauge Wetted Parts
Brass / Copper
Vibration Resistance Properties
None
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

PIC GAUGES Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The PIC GAUGES Industrial Pressure Gauge (MPN 103D-258I) is a U-Clamp Panel-Mount gauge with a 0 psi to 400 psi range, a 2 1/2 in dial, and a 1/8 in NPT Male center back connection. It features copper wetted parts and an accuracy of ±3-2-3%, with no vibration resistance properties.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is PIC GAUGES 103D-258I pressure gauge used for?

The PIC GAUGES 103D-258I is a U-Clamp Panel-Mount industrial pressure gauge used to measure system pressure from 0 psi to 400 psi. It is suitable for applications requiring a 2 1/2 in dial and 1/8 in NPT Male center back connection, with copper wetted parts for compatibility with non-corrosive media.

What are the specifications of PIC GAUGES 103D-258I?

The PIC GAUGES 103D-258I has a 0 psi to 400 psi range, 2 1/2 in dial, 1/8 in NPT Male center back connection, and accuracy of ±3-2-3%. Wetted parts are brass/copper. It has no vibration resistance properties. The gauge is a U-Clamp Panel-Mount type with MPN 103D-258I.

Where to buy PIC GAUGES 103D-258I pressure gauge worldwide?

3G Electric supplies the PIC GAUGES 103D-258I pressure gauge worldwide. As a global industrial solutions provider, we handle full logistics, customs clearance, and delivery to your site. Contact us to order this 0 psi to 400 psi, 2 1/2 in dial gauge with 1/8 in NPT Male connection.

How to install a U-Clamp Panel-Mount pressure gauge like PIC GAUGES 103D-258I?

To install a U-Clamp Panel-Mount gauge such as the PIC GAUGES 103D-258I, cut a panel hole to the clamp size, insert the gauge from the front, and tighten the U-clamp from behind. Ensure the 1/8 in NPT Male connection is sealed with thread tape and torqued to manufacturer specifications to avoid leaks.

Used in

Common applications for PIC GAUGES
Hydraulic system monitoring — PIC GAUGES 103D series panel-mount gauges for 0–3,000 psi oil pressure indication
Corrosive chemical processing — PIC GAUGES 301L series with 316 SS diaphragm seal for 0–600 psi acid line measurement
Pneumatic control panels — PIC GAUGES 104D series front-flange gauges for 0–600 psi compressed air systems
Viscous fluid transfer — PIC GAUGES 301L series with glycerin-filled seal for 0–200 psi slurry or polymer lines
Steam or condensate lines — PIC GAUGES 301L series with 316 SS mini-seal for 0–160 psi steam pressure monitoring
Water treatment plant — PIC GAUGES 103D series U-clamp gauges for 0–1,000 psi pump discharge pressure
