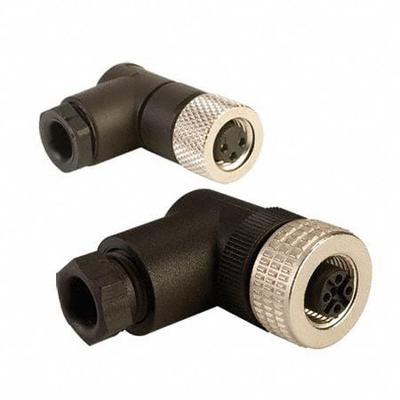

OMEGA Circular Connectors: 4 Pin, M12 Right Angle, IP67, Screw Terminals - Field-Wireable Industrial M12 Circular Connectors
OMEGAField-Wireable Industrial M12 Circular Connectors

OMEGA Circular Connectors: 4 Pin, M12 Right Angle, IP67, Screw Terminals

The OMEGA M12-R-F-FM is a field-wireable industrial M12 circular connector with a 4-pin female connection and a right-angle, 90° orientation. It features screw terminals for wiring, a polymide housing, and an IP67…

SKU 3G-OTH-11508

Brand
OMEGA
Item
Circular Connectors: 4 Pin, M12 Right Angle, IP67, Screw Terminals
Category
Field-Wireable Industrial M12 Circular Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMEGA
Manufacturer Part Number
M12-R-F-FM
Type
M12 Right Angle, IP67, Screw Terminals
Angle
90°
IP Rating
IP67
Application
Connector
Thread Size
M12
Wiring Type
Screw Terminals
Mounting Type
Field Mount
Mounting Style
Right Angle
Connection Type
M12 4 Pin Female
Housing Material
Polymide
Connector Body Type
Pin
Connector Application
For General Sensor Applications
Connector Orientation
90° Angle
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMEGA Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMEGA M12-R-F-FM is a field-wireable industrial M12 circular connector with a 4-pin female connection and a right-angle, 90° orientation. It features screw terminals for wiring, a polymide housing, and an IP67 rating, making it suitable for general sensor applications. This connector uses an M12 thread size and is designed for field mounting.
