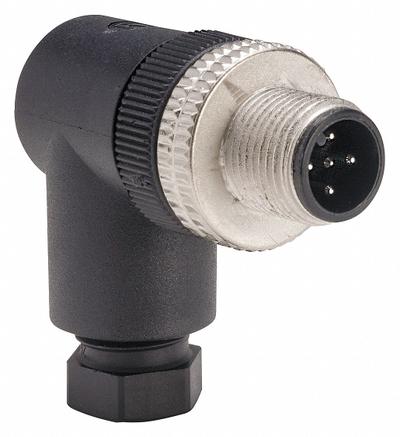

TELEMECANIQUE SENSORS External Thread Connector: 5 Pin, M12 Male Thread, IP67, Screw Terminals - Field-Wireable Industrial M12 Circular Connectors
TELEMECANIQUE SENSORSField-Wireable Industrial M12 Circular Connectors

TELEMECANIQUE SENSORS External Thread Connector: 5 Pin, M12 Male Thread, IP67, Screw Terminals

The TELEMECANIQUE External Thread Connector: 5 Pin is a field-wireable industrial M12 circular connector from TELEMECANIQUE SENSORS. It features a 90° angle orientation, screw terminals, and a plastic housing with an…

SKU 3G-OTH-11304

Brand
TELEMECANIQUE SENSORS
Item
External Thread Connector: 5 Pin, M12 Male Thread, IP67, Screw Terminals
Category
Field-Wireable Industrial M12 Circular Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

TELEMECANIQUE SENSORS
Manufacturer Part Number
XZCC12MCM50B
Type
M12 Male Thread, IP67, Screw Terminals
Angle
90°
IP Rating
IP67
Thread Size
M12
Wiring Type
Screw Terminals
Mounting Style
Male Thread
Voltage Rating
30V AC
Connection Type
Cable Assembly
Housing Material
Plastic
Connector Body Type
Pin
Connector Application
For General Sensor Applications
Connector Orientation
90° Angle
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

TELEMECANIQUE SENSORS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The TELEMECANIQUE External Thread Connector: 5 Pin is a field-wireable industrial M12 circular connector from TELEMECANIQUE SENSORS. It features a 90° angle orientation, screw terminals, and a plastic housing with an IP67 rating. The connector has a male thread mounting style, a voltage rating of 30V AC, and is designed for general sensor applications.
