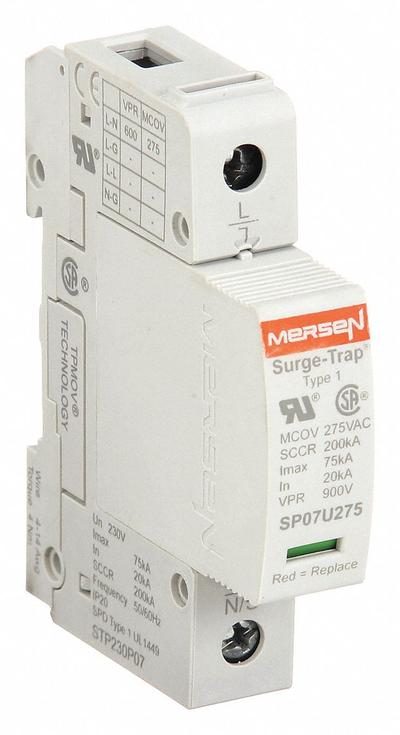

MERSEN Surge Protection Device: Single Phase, 230V AC, 1 Poles, 2 Wires, L-N, 275 V AC - DIN Rail Internal-Mount SPDs

MERSENDIN Rail Internal-Mount SPDs

MERSEN Surge Protection Device: Single Phase, 230V AC, 1 Poles, 2 Wires, L-N, 275 V AC

The MERSEN STP230P07 is a single-phase, DIN-rail internal-mount surge protective device (SPD) rated for 230V AC with a 200kA short-circuit current rating. It provides L-N mode protection with a voltage protection…

SKU 3G-OTH-22693

Brand

MERSEN

Item

Surge Protection Device: Single Phase, 230V AC, 1 Poles, 2 Wires, L-N, 275 V AC

Category

DIN Rail Internal-Mount SPDs

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

MERSEN

Manufacturer Part Number

STP230P07

Type

L-N, 600V (L-N)

AC

230V

Poles

1

Wires

2

Voltage

230V AC

Filtering

No

Mounting Style

DIN-Rail

Number of Wires

2 Wires

Enclosure Material

Polyethylene Terephthalate

Modes of Protection

L-N

Voltage Protection Rating

600V (L-N)

Short Circuit Current Rating

200kA

Max. Continuing Operating Voltage

275 V AC

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

MERSEN Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MERSEN STP230P07 is a single-phase, DIN-rail internal-mount surge protective device (SPD) rated for 230V AC with a 200kA short-circuit current rating. It provides L-N mode protection with a voltage protection rating of 600V (L-N) and a maximum continuous operating voltage of 275V AC. The unit features a polyethylene terephthalate enclosure and is designed for 2-wire, 1-pole configurations.
