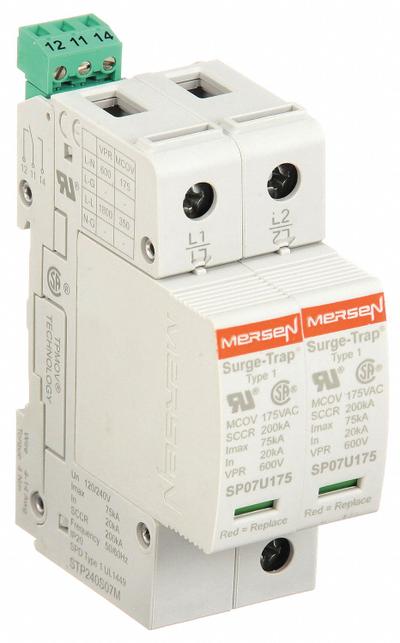

MERSEN Surge Protection Device: Single Phase, 120/240V AC, 2 Poles, 3 Wires, L-L/L-N - DIN Rail Internal-Mount SPDs
MERSENDIN Rail Internal-Mount SPDs

MERSEN Surge Protection Device: Single Phase, 120/240V AC, 2 Poles, 3 Wires, L-L/L-N

The MERSEN STP240S07M is a single-phase, DIN-rail internal-mount surge protective device (SPD) rated for 120/240V AC, 3-wire, 2-pole configurations. It provides L-N mode protection with a voltage protection rating of…

SKU 3G-OTH-22555

Brand
MERSEN
Item
Surge Protection Device: Single Phase, 120/240V AC, 2 Poles, 3 Wires, L-L/L-N
Category
DIN Rail Internal-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

MERSEN
Manufacturer Part Number
STP240S07M
Type
L-L/L-N
AC
120/240V
Poles
2
Wires
3
Voltage
120/240V AC
Includes
Form C Dry Contact
Filtering
No
Mounting Style
DIN-Rail
Number of Wires
3 Wires
Enclosure Material
Polyethylene Terephthalate
Modes of Protection
L-N
Voltage Protection Rating
600V (L-N)
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
175/350 V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

MERSEN Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The MERSEN STP240S07M is a single-phase, DIN-rail internal-mount surge protective device (SPD) rated for 120/240V AC, 3-wire, 2-pole configurations. It provides L-N mode protection with a voltage protection rating of 600V (L-N), a short-circuit current rating of 200kA, and a maximum continuous operating voltage of 175/350V AC. This unit includes a Form C dry contact and is housed in a polyethylene terephthalate enclosure.
