Honeywell Circular Paper Chart: Honeywell, 0°F to 1,000°F, BN 24001660-007, Honeywell - Circular Charts Compatible with Honeywell
HoneywellCircular Charts Compatible with Honeywell

Honeywell Circular Paper Chart: Honeywell, 0°F to 1,000°F, BN 24001660-007, Honeywell

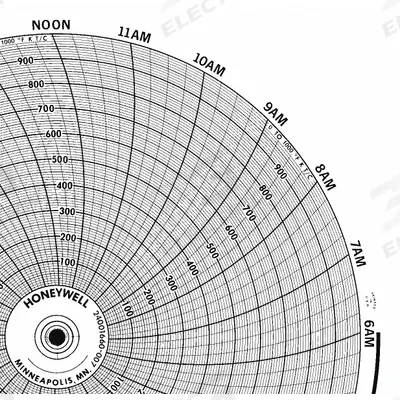

The HONEYWELL Circular Paper Chart is a temperature-measuring circular chart compatible with Honeywell recorders, specifically the DR 4311 model. It measures temperature in degrees Fahrenheit, with a range of 0°F to…

SKU 3G-OTH-170681

Brand
Honeywell
Item
Circular Paper Chart: Honeywell, 0°F to 1,000°F, BN 24001660-007, Honeywell
Category
Circular Charts Compatible with Honeywell
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
BN 24001660-007
Type
0°F to 1,000°F, BN 24001660-007, Honeywell, 100 PK
Units Measured
Temperature °F
Compatible with Manufacturer Model Number
DR 4311
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HONEYWELL Circular Paper Chart is a temperature-measuring circular chart compatible with Honeywell recorders, specifically the DR 4311 model. It measures temperature in degrees Fahrenheit, with a range of 0°F to 1,000°F, and is supplied in packs of 100. The manufacturer part number is BN 24001660-007.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Honeywell circular paper chart used for?

The Honeywell circular paper chart is used with Honeywell DR 4311 recorders to log temperature readings over time. It measures temperature in degrees Fahrenheit from 0°F to 1,000°F, making it suitable for industrial process monitoring, HVAC, and environmental control applications.

What are the specifications of the Honeywell circular paper chart?

This Honeywell circular paper chart has a temperature range of 0°F to 1,000°F, measures in degrees Fahrenheit, and is compatible with the Honeywell DR 4311 recorder. The manufacturer part number is BN 24001660-007, and it is supplied in packs of 100.

Where to buy Honeywell circular paper charts worldwide?

3G Electric supplies Honeywell circular paper charts worldwide. As a global industrial equipment distributor, we handle full logistics, customs clearance, and delivery to your location. Contact us to source the BN 24001660-007 chart for your Honeywell DR 4311 recorder.

How to install a Honeywell circular paper chart?

To install, open the recorder door, remove the old chart, and align the new Honeywell chart's center hole with the drive spindle. Ensure the chart is flat and the time markings match the recorder's rotation. Close the door and verify the pen contacts the paper. Refer to the DR 4311 manual for exact steps.
