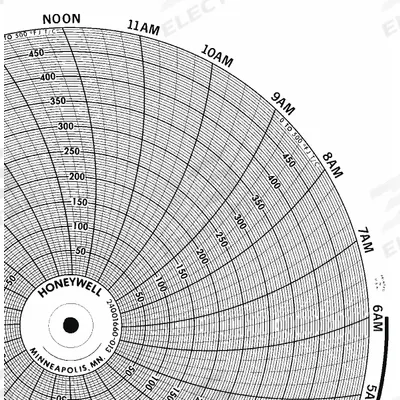

Honeywell Circular Paper Chart: Honeywell, 0°C to 150°C, BN 24001660-070, Honeywell - Circular Charts Compatible with Honeywell
HoneywellCircular Charts Compatible with Honeywell

Honeywell Circular Paper Chart: Honeywell, 0°C to 150°C, BN 24001660-070, Honeywell

The HONEYWELL Circular Paper Chart is a temperature-measuring circular chart compatible with Honeywell DR 4300 recorders. It measures temperature in degrees Celsius (°C) over a 0°C to 150°C range, supplied as a pack…

SKU 3G-OTH-170700

Brand
Honeywell
Item
Circular Paper Chart: Honeywell, 0°C to 150°C, BN 24001660-070, Honeywell
Category
Circular Charts Compatible with Honeywell
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
BN 24001660-070
Type
0°C to 150°C, BN 24001660-070, Honeywell, Temp°C, 100 PK
Units Measured
Temperature °C
Compatible with Manufacturer Model Number
DR 4300
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HONEYWELL Circular Paper Chart is a temperature-measuring circular chart compatible with Honeywell DR 4300 recorders. It measures temperature in degrees Celsius (°C) over a 0°C to 150°C range, supplied as a pack of 100. This OEM part (BN 24001660-070) is designed for use with Honeywell instrumentation.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Honeywell circular paper chart used for?

This Honeywell circular paper chart records temperature over a 0°C to 150°C range. It is designed for use with Honeywell DR 4300 recorders in industrial process monitoring, HVAC, and combustion applications where continuous temperature logging is required.

What are the specifications of the Honeywell circular paper chart BN 24001660-070?

This Honeywell circular paper chart measures temperature in degrees Celsius from 0°C to 150°C. It is compatible with the Honeywell DR 4300 recorder and supplied as a pack of 100. The OEM part number is BN 24001660-070.

Where to buy Honeywell circular paper charts worldwide?

3G Electric supplies Honeywell circular paper charts worldwide. We handle full logistics and customs clearance for global delivery. Contact us to order the BN 24001660-070 pack of 100 for your Honeywell DR 4300 recorder.

How to install a Honeywell circular paper chart in a DR 4300 recorder?

To install, open the recorder door, remove the old chart, and place the new Honeywell circular paper chart on the spindle. Align the chart with the drive pins and close the door. Ensure the pen arm rests on the chart surface for accurate temperature recording.
