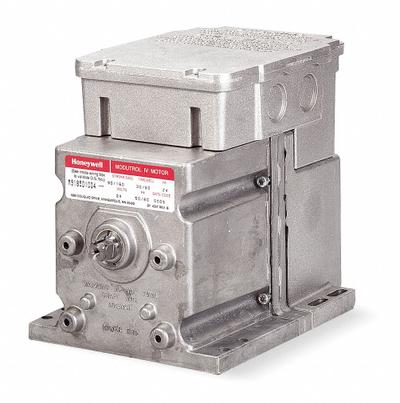

Honeywell Actuator: Dampers/Valves, Proportional, Spring Return, 60 in-lb, 24V AC - Fail-Safe Actuators with Spring Return
HoneywellFail-Safe Actuators with Spring Return

Honeywell Actuator: Dampers/Valves, Proportional, Spring Return, 60 in-lb, 24V AC

The Honeywell M9185D1004/U is a fail-safe spring-return actuator for dampers and valves, featuring a double-ended shaft with clockwise rotation and a stroke range of 90 to 160°. It operates on 24V AC input with a 23W…

SKU 3G-OTH-67531

Brand
Honeywell
Item
Actuator: Dampers/Valves, Proportional, Spring Return, 60 in-lb, 24V AC
Category
Fail-Safe Actuators with Spring Return
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
M9185D1004/U
Type
Proportional, Spring Return, 60 in-lb, Hardwired, NEMA 3
AC
24V
Shaft Type
Double-Ended
Power Rating
23W
Input Voltage
24V AC
Stroke Degree
90 to 160°
Shaft Rotation
CW
Auxiliary Switch Included
No
Electrical Connection Type
Hardwired
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Honeywell M9185D1004/U is a fail-safe spring-return actuator for dampers and valves, featuring a double-ended shaft with clockwise rotation and a stroke range of 90 to 160°. It operates on 24V AC input with a 23W power rating, is hardwired, and includes a NEMA 3 enclosure.
