Honeywell Rotary Actuator: Dampers/Valves, On/Off, Spring Return, 60 in-lb, 24V AC - Fail-Safe Actuators with Spring Return

HoneywellFail-Safe Actuators with Spring Return

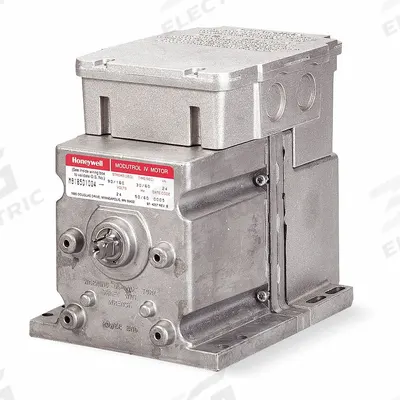

Honeywell Rotary Actuator: Dampers/Valves, On/Off, Spring Return, 60 in-lb, 24V AC

The Honeywell M8185D1006/U is a fail-safe rotary actuator with spring return for dampers and valves, featuring a double-ended shaft, 160° stroke, and clockwise rotation. It operates on 24V AC with a 20W power rating…

SKU 3G-OTH-67520

Brand

Honeywell

Item

Rotary Actuator: Dampers/Valves, On/Off, Spring Return, 60 in-lb, 24V AC

Category

Fail-Safe Actuators with Spring Return

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

Honeywell

Manufacturer Part Number

M8185D1006/U

Type

On/Off, Spring Return, 60 in-lb, Hardwired, NEMA 3 / IP54

AC

24V

Shaft Type

Double-Ended

Power Rating

20W

Input Voltage

24V AC

Stroke Degree

160°

Shaft Rotation

CW

Auxiliary Switch Included

No

Electrical Connection Type

Hardwired

For Use With Building Automation Systems

Building Automation System Compatible

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Honeywell Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Honeywell M8185D1006/U is a fail-safe rotary actuator with spring return for dampers and valves, featuring a double-ended shaft, 160° stroke, and clockwise rotation. It operates on 24V AC with a 20W power rating, is hardwired, and is compatible with building automation systems.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.
