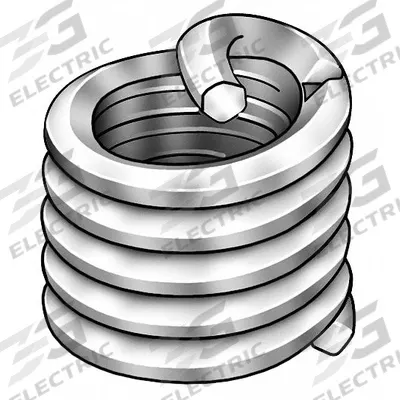

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-24 Thread Size - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-24 Thread Size

3G Electric supplies the HELI-COIL Helical Insert, a tanged tang-style screw-locking insert in a plain finish. This 100-piece pack features a 5/16"-24 fine thread, right-hand direction, and a tensile strength of…

SKU 3G-OTH-528851

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-24 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
A3591-5EN469
Type
Screw-Locking, Plain, 100 PK
Tensile Strength
200,000 psi
Finish Type
Plain
Thread Size
5/16"-24
Thread Type
Fine
STI Tap Size
5/16"-24
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
Nitronic 60
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

3G Electric supplies the HELI-COIL Helical Insert, a tanged tang-style screw-locking insert in a plain finish. This 100-piece pack features a 5/16"-24 fine thread, right-hand direction, and a tensile strength of 200,000 psi, made from Nitronic 60 material for metal compatibility.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a HELI-COIL helical insert used for?

A HELI-COIL helical insert repairs or reinforces threads in metal. This screw-locking tanged tang style prevents loosening under vibration, making it ideal for automotive, aerospace, and industrial maintenance applications where thread integrity is critical.

What are the specifications of the HELI-COIL A3591-5EN469 insert?

This HELI-COIL insert has a 5/16"-24 fine thread, right-hand direction, and a tensile strength of 200,000 psi. It is made from Nitronic 60 material, plain finish, and comes in a 100-piece pack. The STI tap size is 5/16"-24, and it is compatible with metal substrates.

Where to buy HELI-COIL helical inserts in worldwide?

3G Electric supplies HELI-COIL helical inserts worldwide. We handle full logistics, customs clearance, and delivery to your facility. As a global industrial sourcing partner, we provide genuine HELI-COIL parts like the A3591-5EN469 without requiring a local distributor.

How to install a tanged tang-style helical insert?

Install a tanged tang-style helical insert by first drilling and tapping the hole to the specified STI tap size (5/16"-24). Use a tang break-off tool after insertion to remove the tang. Ensure the insert is fully seated below the surface for proper thread locking and load distribution.

Used in

Common applications for HELI-COIL
Aerospace engine repair — HELI-COIL STI taps for M12x1.75 metric threads in aluminum alloy components
Automotive transmission rebuild — HELI-COIL STI taps for 7/16-14 UNC threads in cast iron housings
Industrial pump maintenance — HELI-COIL STI taps for #10-32 UNF threads in stainless steel pump bodies
Hydraulic cylinder repair — HELI-COIL STI taps for M6x1 metric threads in steel cylinder heads
General manufacturing — HELI-COIL STI taps for 9/16-18 UNF threads in machinery base plates
