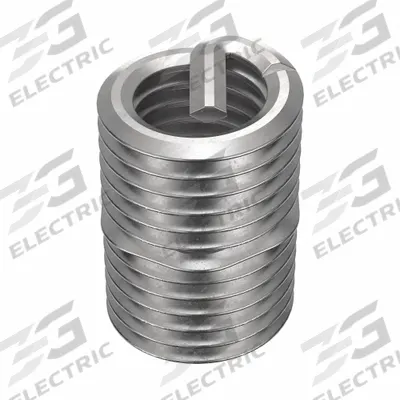

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size

3G Electric supplies the HELI-COIL Helical Insert: Tanged Tang Style, a screw-locking tanged helical insert with a 1/4"-28 fine thread, right-hand direction, and 18-8 material grade. This 100-pack offers a tensile…

SKU 3G-OTH-528896

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
A3591-4CNW500
Type
Screw-Locking, 100 PK
Tensile Strength
200,000 to 250,000 psi
Finish Type
Dry Film Lubricant
Thread Size
1/4"-28
Thread Type
Fine
STI Tap Size
1/4"-28
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

3G Electric supplies the HELI-COIL Helical Insert: Tanged Tang Style, a screw-locking tanged helical insert with a 1/4"-28 fine thread, right-hand direction, and 18-8 material grade. This 100-pack offers a tensile strength of 200,000 to 250,000 psi, a dry film lubricant finish, and is compatible with metal substrates. We interpret demand and deliver across 14 industrial departments—with specialist depth in combustion, pumps, and controls—backed by authorized distribution for brands like HELI-COIL, Schneider, ABB, Siemens, SKF, Festo, Fluke, Interpump, and FBR.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a HELI-COIL helical insert used for?

A HELI-COIL helical insert repairs or reinforces threads in metal substrates. This screw-locking tanged style prevents loosening under vibration, making it ideal for automotive, aerospace, and industrial equipment where thread integrity is critical.

What are the specifications of the HELI-COIL A3591-4CNW500?

This 100-pack insert has a 1/4"-28 fine thread, right-hand direction, 18-8 material grade, and tensile strength of 200,000 to 250,000 psi. It features a dry film lubricant finish and requires an STI tap size of 1/4"-28.

Where to buy HELI-COIL helical inserts worldwide?

3G Electric supplies HELI-COIL helical inserts worldwide. We handle full logistics and customs clearance, sourcing genuine parts like the A3591-4CNW500 across 14 industrial departments, with specialist expertise in combustion, pumps, and controls.

How to install a tanged helical insert?

Install a tanged helical insert by drilling to the specified STI tap size, tapping the hole with the correct STI tap, then winding the insert into the thread using a tang drive tool. After installation, break off the tang for a flush finish.

Used in

Common applications for HELI-COIL
Aerospace engine repair — HELI-COIL STI taps for M12x1.75 metric threads in aluminum alloy components
Automotive transmission rebuild — HELI-COIL STI taps for 7/16-14 UNC threads in cast iron housings
Industrial pump maintenance — HELI-COIL STI taps for #10-32 UNF threads in stainless steel pump bodies
Hydraulic cylinder repair — HELI-COIL STI taps for M6x1 metric threads in steel cylinder heads
General manufacturing — HELI-COIL STI taps for 9/16-18 UNF threads in machinery base plates
