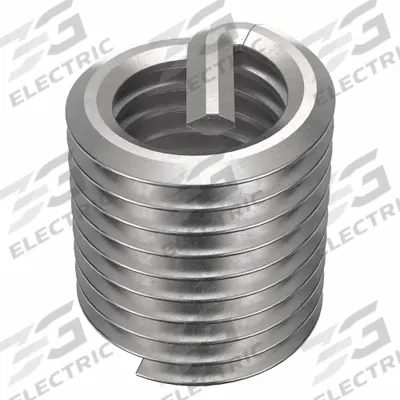

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size

The HELI-COIL Helical Insert is a tanged tang style, screw-locking insert in a 100-pack, with a 1/4"-28 fine thread, right-hand direction, and an 18-8 material grade. It features a dry film lubricant finish, a…

SKU 3G-OTH-528911

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
A3591-4CNW375
Type
Screw-Locking, 100 PK
Tensile Strength
200,000 to 250,000 psi
Finish Type
Dry Film Lubricant
Thread Size
1/4"-28
Thread Type
Fine
STI Tap Size
1/4"-28
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HELI-COIL Helical Insert is a tanged tang style, screw-locking insert in a 100-pack, with a 1/4"-28 fine thread, right-hand direction, and an 18-8 material grade. It features a dry film lubricant finish, a tensile strength of 200,000 to 250,000 psi, and is compatible with metal substrates, requiring an STI tap size of 1/4"-28.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a HELI-COIL helical insert used for?

A HELI-COIL helical insert repairs or reinforces threads in metal substrates, providing a durable, screw-locking thread for fasteners. It is commonly used in automotive, aerospace, and industrial maintenance to restore stripped threads or improve thread strength in aluminum or steel components.

What are the specifications of the HELI-COIL A3591-4CNW375 insert?

This HELI-COIL insert has a 1/4\"-28 fine thread, right-hand direction, and an 18-8 material grade. It offers a tensile strength of 200,000 to 250,000 psi, features a dry film lubricant finish, and requires an STI tap size of 1/4\"-28. It comes in a 100-pack with tanged tang style.

Where to buy HELI-COIL helical inserts worldwide?

3G Electric supplies HELI-COIL helical inserts worldwide, handling logistics, customs, and delivery to your location. As a global industrial solutions provider, we source genuine parts like the A3591-4CNW375 and ensure they reach you reliably, regardless of your country.

How to install a HELI-COIL screw-locking insert?

To install a HELI-COIL screw-locking insert, drill out the damaged thread to the specified size, tap the hole using the correct STI tap (1/4\"-28 for this insert), then wind the insert into the hole using a tang-style installation tool. Break off the tang after installation for a secure, locking thread.

Used in

Common applications for HELI-COIL
Aerospace engine repair — HELI-COIL STI taps for M12x1.75 metric threads in aluminum alloy components
Automotive transmission rebuild — HELI-COIL STI taps for 7/16-14 UNC threads in cast iron housings
Industrial pump maintenance — HELI-COIL STI taps for #10-32 UNF threads in stainless steel pump bodies
Hydraulic cylinder repair — HELI-COIL STI taps for M6x1 metric threads in steel cylinder heads
General manufacturing — HELI-COIL STI taps for 9/16-18 UNF threads in machinery base plates
