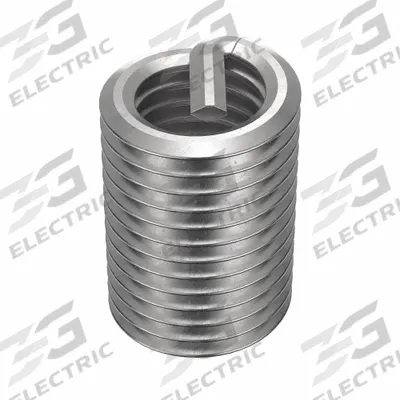

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size, Plain - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size, Plain

The HELI-COIL Helical Insert is a tanged tang style, screw-locking insert with a 1/4"-28 fine thread, plain finish, and 18-8 material grade. It offers a tensile strength of 200,000 to 250,000 psi, is compatible with…

SKU 3G-OTH-529018

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 1/4"-28 Thread Size, Plain
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
A3591-4CN500
Type
Screw-Locking, Plain, 100 PK
Tensile Strength
200,000 to 250,000 psi
Finish Type
Plain
Thread Size
1/4"-28
Thread Type
Fine
STI Tap Size
1/4"-28
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HELI-COIL Helical Insert is a tanged tang style, screw-locking insert with a 1/4"-28 fine thread, plain finish, and 18-8 material grade. It offers a tensile strength of 200,000 to 250,000 psi, is compatible with metal, and comes in a 100-pack. 3G Electric interprets demand and delivers this genuine industrial insert across 14 departments, with specialist depth in combustion, pumps, and controls as an authorised distributor.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a HELI-COIL helical insert used for?

A HELI-COIL helical insert repairs or strengthens threaded holes in metal. The screw-locking design resists vibration loosening. 3G Electric supplies this genuine insert across 14 industrial departments, with specialist depth in combustion, pumps, and controls.

What are the specifications of the HELI-COIL A3591-4CN500 insert?

This HELI-COIL insert has a 1/4"-28 fine thread, 18-8 material grade, and tensile strength of 200,000 to 250,000 psi. It is tanged tang style, screw-locking, plain finish, and comes in a 100-pack. 3G Electric sources and delivers this genuine industrial part worldwide.

Where to buy HELI-COIL helical inserts in worldwide?

3G Electric supplies HELI-COIL helical inserts worldwide. As a global industrial solutions provider, we handle logistics, customs, and delivery to your location. Contact us to order the A3591-4CN500 100-pack or other thread sizes.

How to install a HELI-COIL screw-locking insert?

Drill out the damaged thread, tap with the correct STI tap (1/4"-28 for this insert), then use a tang installation tool to wind the insert into the hole. Break off the tang after installation. 3G Electric provides genuine HELI-COIL inserts and can advise on tooling.

Used in

Common applications for HELI-COIL
Aerospace engine repair — HELI-COIL STI taps for M12x1.75 metric threads in aluminum alloy components
Automotive transmission rebuild — HELI-COIL STI taps for 7/16-14 UNC threads in cast iron housings
Industrial pump maintenance — HELI-COIL STI taps for #10-32 UNF threads in stainless steel pump bodies
Hydraulic cylinder repair — HELI-COIL STI taps for M6x1 metric threads in steel cylinder heads
General manufacturing — HELI-COIL STI taps for 9/16-18 UNF threads in machinery base plates
