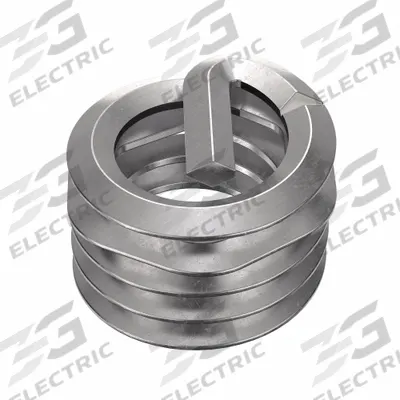

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-18 Thread Size - Screw-Locking Tanged Helical Inserts
HELI-COILScrew-Locking Tanged Helical Inserts

HELI-COIL Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-18 Thread Size

The HELI-COIL Helical Insert (SKU 4EXK2) is a tanged tang style, screw-locking insert with a 5/16"-18 coarse thread, plain finish, and 18-8 material grade. It offers a tensile strength of 200,000 to 250,000 psi, is…

SKU 3G-OTH-528840

Brand
HELI-COIL
Item
Helical Insert: Tanged Tang Style, Screw-Locking, 5/16"-18 Thread Size
Category
Screw-Locking Tanged Helical Inserts
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

HELI-COIL
Manufacturer Part Number
3585-5CN312S
Type
Screw-Locking, Plain, 500 PK
Tensile Strength
200,000 to 250,000 psi
Finish Type
Plain
Thread Size
5/16"-18
Thread Type
Coarse
STI Tap Size
5/16"-18
Thread Direction
Right Hand
Compatible Material
Metal
Material Grade/Class
18-8
System of Measurement
Inch
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

HELI-COIL Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The HELI-COIL Helical Insert (SKU 4EXK2) is a tanged tang style, screw-locking insert with a 5/16"-18 coarse thread, plain finish, and 18-8 material grade. It offers a tensile strength of 200,000 to 250,000 psi, is compatible with metal, and comes in a 500-piece pack. 3G Electric interprets demand and delivers this genuine industrial insert across 14 departments, with specialist depth in combustion, pumps, and controls as an authorised distributor.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is a HELI-COIL helical insert used for?

A HELI-COIL helical insert repairs or reinforces threads in metal. This screw-locking, tanged tang style insert with 5/16"-18 coarse thread provides strong, wear-resistant threads in aluminum, cast iron, and steel assemblies. 3G Electric supplies this genuine HELI-COIL insert for industrial maintenance and production applications worldwide.

What are the specifications of the HELI-COIL 3585-5CN312S insert?

This HELI-COIL insert has a 5/16"-18 coarse thread, 18-8 material grade, plain finish, and tensile strength of 200,000 to 250,000 psi. It is right-hand threaded, compatible with metal, and requires an STI tap size of 5/16"-18. The pack contains 500 pieces.

Where to buy HELI-COIL helical inserts in worldwide?

3G Electric supplies genuine HELI-COIL helical inserts worldwide. As a global industrial solutions provider, we handle full logistics and customs clearance to deliver this 5/16"-18 screw-locking insert to your facility. Contact us for availability and lead time on this 500-piece pack.

How to install a HELI-COIL tanged tang insert?

To install a HELI-COIL tanged tang insert, drill to the specified size, tap with the correct STI tap (5/16"-18 for this insert), then use a HELI-COIL installation tool to wind the insert into the tapped hole. After installation, break off the tang with a punch. 3G Electric can provide sourcing support for installation tools.

Used in

Common applications for HELI-COIL
Aerospace engine repair — HELI-COIL STI taps for M12x1.75 metric threads in aluminum alloy components
Automotive transmission rebuild — HELI-COIL STI taps for 7/16-14 UNC threads in cast iron housings
Industrial pump maintenance — HELI-COIL STI taps for #10-32 UNF threads in stainless steel pump bodies
Hydraulic cylinder repair — HELI-COIL STI taps for M6x1 metric threads in steel cylinder heads
General manufacturing — HELI-COIL STI taps for 9/16-18 UNF threads in machinery base plates
