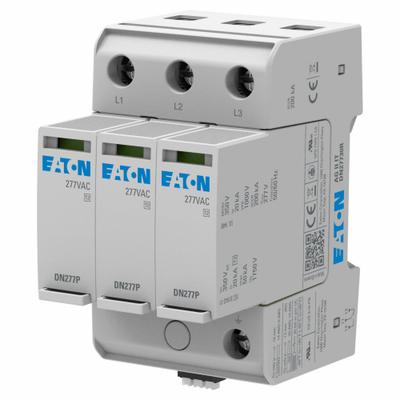

EATON Surge Protection Device: Three Phase, 277V AC Delta, 3 Poles, 3 + Ground Wires - DIN Rail Internal-Mount SPDs

EATONDIN Rail Internal-Mount SPDs

EATON Surge Protection Device: Three Phase, 277V AC Delta, 3 Poles, 3 + Ground Wires

The EATON AGDN27730R is a three-phase DIN Rail internal-mount surge protective device (SPD) designed for 277V AC Delta systems with 3 wires plus ground. It provides N-G mode protection, a voltage protection rating of…

SKU 3G-OTH-22758

Brand

EATON

Item

Surge Protection Device: Three Phase, 277V AC Delta, 3 Poles, 3 + Ground Wires

Category

DIN Rail Internal-Mount SPDs

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

EATON

Manufacturer Part Number

AGDN27730R

Type

3 + Ground Wires, L-G/L-N/N-G

Poles

3

Voltage

277V AC Delta

AC Delta

277V

Includes

Alarm Contacts

Filtering

No

Mounting Style

Panelboard

Number of Wires

3 Wires + Ground

Modes of Protection

N-G

Voltage Protection Rating

1500V (L-L, L-G)

Short Circuit Current Rating

200 kA

Max. Continuing Operating Voltage

277 V AC

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

EATON Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON AGDN27730R is a three-phase DIN Rail internal-mount surge protective device (SPD) designed for 277V AC Delta systems with 3 wires plus ground. It provides N-G mode protection, a voltage protection rating of 1500V (L-L, L-G), and a short circuit current rating of 200 kA. This SPD includes alarm contacts and has a maximum continuous operating voltage of 277 V AC, with no filtering.
