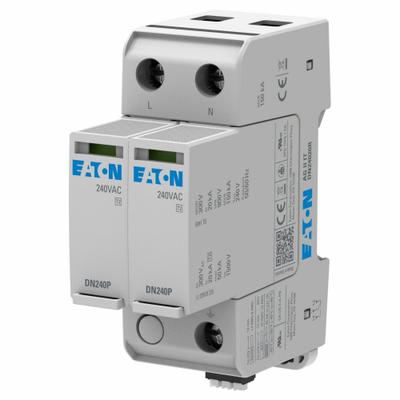

EATON Surge Protection Device: Two Phase, 240V AC, 2 Poles, 2 + Ground Wires - DIN Rail Internal-Mount SPDs
EATONDIN Rail Internal-Mount SPDs

EATON Surge Protection Device: Two Phase, 240V AC, 2 Poles, 2 + Ground Wires

The EATON AGDN24020R is a two-phase, DIN Rail internal-mount surge protective device (SPD) for panelboard mounting. It operates on 240V AC with 2 wires plus ground, providing L-G mode protection and a voltage…

SKU 3G-OTH-22712

Brand
EATON
Item
Surge Protection Device: Two Phase, 240V AC, 2 Poles, 2 + Ground Wires
Category
DIN Rail Internal-Mount SPDs
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
AGDN24020R
Type
2 + Ground Wires, L-G/L-N/N-G
AC
240V
Phase
Two
Poles
2
Voltage
240V AC
Includes
Alarm Contacts
Filtering
No
Mounting Style
Panelboard
Number of Wires
2 Wires + Ground
Modes of Protection
L-G
Voltage Protection Rating
1500V (L-L, L-G, N-G)
Short Circuit Current Rating
150 kA
Max. Continuing Operating Voltage
240 V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON AGDN24020R is a two-phase, DIN Rail internal-mount surge protective device (SPD) for panelboard mounting. It operates on 240V AC with 2 wires plus ground, providing L-G mode protection and a voltage protection rating of 1500V (L-L, L-G, N-G). The unit includes alarm contacts and has a short-circuit current rating of 150 kA, with a maximum continuous operating voltage of 240V AC.
