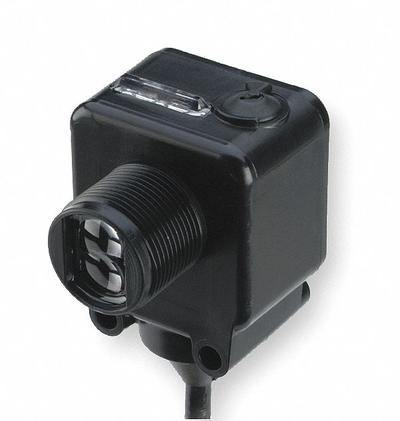

EATON Photoelectric Sensor: M18 Threaded, Pigtail Connector, 4 - Pin M12, 10-30V DC - Rectangular Sensors with Pigtail Connectors
EATONRectangular Sensors with Pigtail Connectors

EATON Photoelectric Sensor: M18 Threaded, Pigtail Connector, 4 - Pin M12, 10-30V DC

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a pigtail connector, featuring an M18 threaded body made of resin. It operates on a 10-30V DC supply voltage and includes a 4-pin M12 direct…

SKU 3G-OTH-33494

Brand
EATON
Item
Photoelectric Sensor: M18 Threaded, Pigtail Connector, 4 - Pin M12, 10-30V DC
Category
Rectangular Sensors with Pigtail Connectors
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
E65-SMPP050-HL
Series
E65 SM
Type
Pigtail Connector, NPN and PNP
DC
10-30V
Pin M12
4 -
Body Material
Resin
Electrical Connection
M12
NEMA Enclosure Rating
12
Nominal Sensor Diameter
M18 Threaded
DC Supply Voltage Rating
10-30V DC
Electrical Installation Type
Direct Connector
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a pigtail connector, featuring an M18 threaded body made of resin. It operates on a 10-30V DC supply voltage and includes a 4-pin M12 direct connector, with NPN and PNP outputs. The sensor carries a NEMA enclosure rating of 12.
