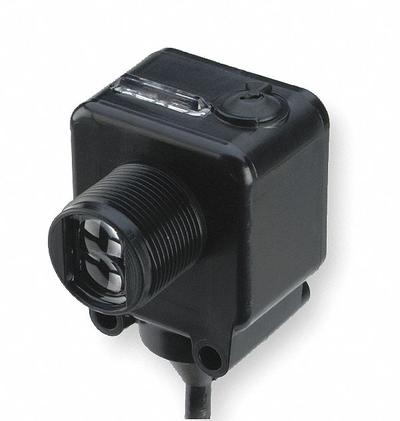

EATON Photoelectric Sensor: M18 Threaded, Non-Terminated Cable, 10-30V DC - Rectangular Sensors with Non-Terminated Cables
EATONRectangular Sensors with Non-Terminated Cables

EATON Photoelectric Sensor: M18 Threaded, Non-Terminated Cable, 10-30V DC

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a non-terminated cable, featuring an M18 threaded body made of resin. It operates on a 10-30V DC supply voltage and supports both NPN and PNP…

SKU 3G-OTH-33948

Brand
EATON
Item
Photoelectric Sensor: M18 Threaded, Non-Terminated Cable, 10-30V DC
Category
Rectangular Sensors with Non-Terminated Cables
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
E65-SMPP100-HD
Series
E65 SM
Type
Non-Terminated Cable, NPN and PNP
DC
10-30V
Body Material
Resin
Electrical Connection
Bare Wire
NEMA Enclosure Rating
4X
Nominal Sensor Diameter
M18 Threaded
DC Supply Voltage Rating
10-30V DC
Electrical Installation Type
Prewired Cable
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON E65 SM Series photoelectric sensor is a rectangular sensor with a non-terminated cable, featuring an M18 threaded body made of resin. It operates on a 10-30V DC supply voltage and supports both NPN and PNP outputs, with a bare-wire electrical connection and a prewired cable installation type. The sensor carries a NEMA 4X enclosure rating, making it suitable for industrial environments requiring protection against corrosion and washdowns.
