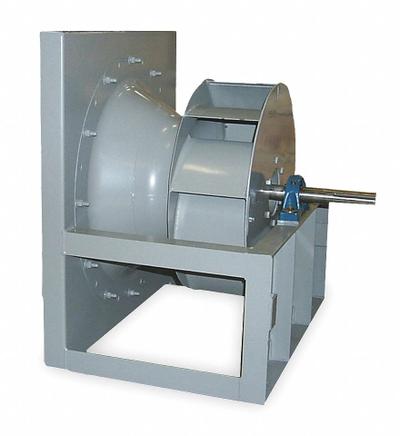

Dayton Plenum Fan: 24 1/2 in Wheel Dia, Belt Drive, With Drive, 8,865 cfm @ 0.250 in SP - Belt-Drive Blower with Drive
DaytonBelt-Drive Blower with Drive

Dayton Plenum Fan: 24 1/2 in Wheel Dia, Belt Drive, With Drive, 8,865 cfm @ 0.250 in SP

The Dayton 7AL96 is an unassembled belt-drive plenum blower with a 24 1/2-inch wheel diameter and a backward-curved wheel. It delivers 8,865 cfm at 0.250 in SP and is powered by a 230V AC totally enclosed fan-cooled…

SKU 3G-OTH-74783

Brand
Dayton
Item
Plenum Fan: 24 1/2 in Wheel Dia, Belt Drive, With Drive, 8,865 cfm @ 0.250 in SP
Category
Belt-Drive Blower with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7AL96
Type
Belt Drive, With Drive, 8,865 cfm @ 0.250 in SP, TEFC
AC
230V
Assembly
Unassembled
Wheel Type
Backward-Curved
Motor Enclosure
Totally Enclosed Fan Cooled
Nameplate Voltage
230V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7AL96 is an unassembled belt-drive plenum blower with a 24 1/2-inch wheel diameter and a backward-curved wheel. It delivers 8,865 cfm at 0.250 in SP and is powered by a 230V AC totally enclosed fan-cooled motor.
