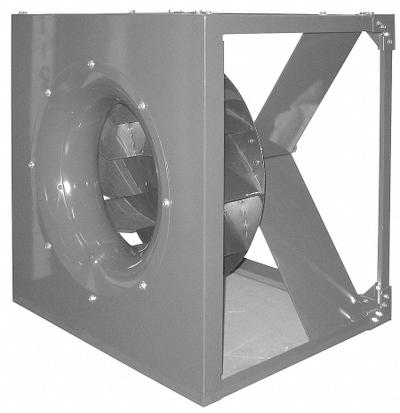

Dayton Plenum Fan: 18 1/2 in Wheel Dia, Belt Drive, With Drive, 3,332 cfm @ 0.250 in SP - Belt-Drive Blower with Drive
DaytonBelt-Drive Blower with Drive

Dayton Plenum Fan: 18 1/2 in Wheel Dia, Belt Drive, With Drive, 3,332 cfm @ 0.250 in SP

The Dayton 7AL34 is an unassembled belt-drive plenum blower with a backward-curved wheel and an 18 1/2 in wheel diameter. It delivers 3,332 cfm at 0.250 in static pressure, powered by a 3/4 hp, 1-phase, open…

SKU 3G-OTH-74693

Brand
Dayton
Item
Plenum Fan: 18 1/2 in Wheel Dia, Belt Drive, With Drive, 3,332 cfm @ 0.250 in SP
Category
Belt-Drive Blower with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7AL34
Type
Belt Drive, With Drive, 3,332 cfm @ 0.250 in SP, ODP, 3/4 hp
Ph
1
Assembly
Unassembled
Wheel Type
Backward-Curved
Motor Enclosure
Open Dripproof
Nameplate Voltage
115/208-230V AC
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 7AL34 is an unassembled belt-drive plenum blower with a backward-curved wheel and an 18 1/2 in wheel diameter. It delivers 3,332 cfm at 0.250 in static pressure, powered by a 3/4 hp, 1-phase, open dripproof motor rated for 115/208-230V AC.
