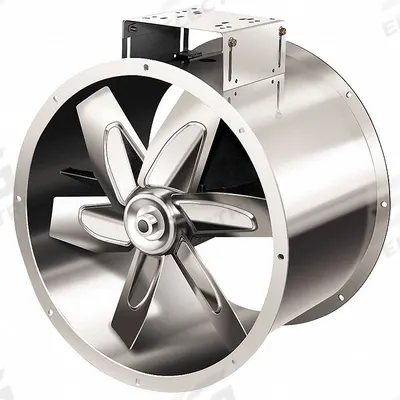

Dayton Tubeaxial Fan: Corrosive Vapor, 30 in Blade, 16,495 cfm @ 0.000 in SP, 230V AC - Corrosive Vapor Belt-Drive Fans with Drive
DaytonCorrosive Vapor Belt-Drive Fans with Drive

Dayton Tubeaxial Fan: Corrosive Vapor, 30 in Blade, 16,495 cfm @ 0.000 in SP, 230V AC

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG71) is an unassembled belt-drive fan with drive, featuring a 30-inch blade and delivering 16,495 cfm at 0.000 in SP. It operates on 230V AC, 1-phase power with a 5 hp…

SKU 3G-OTH-79159

Brand
Dayton
Item
Tubeaxial Fan: Corrosive Vapor, 30 in Blade, 16,495 cfm @ 0.000 in SP, 230V AC
Category
Corrosive Vapor Belt-Drive Fans with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7AG71
Type
16,495 cfm @ 0.000 in SP, 5 hp
AC
230V
Blade
30 in
Phase
1
Assembly
Unassembled
Motor Type
Capacitor-Start Capacitor-Run
Motor Enclosure
Totally Enclosed Fan Cooled
Number of Speeds
1
Nameplate Voltage
230V AC
Mounting Orientation
Horizontal
Includes Drive Package
Yes
Airflow @ 0.000 in SP - Range
10,000 to 19,999 cfm
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG71) is an unassembled belt-drive fan with drive, featuring a 30-inch blade and delivering 16,495 cfm at 0.000 in SP. It operates on 230V AC, 1-phase power with a 5 hp capacitor-start capacitor-run motor in a totally enclosed fan-cooled enclosure. This horizontal-mount unit is not rated for hazardous locations.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON Tubeaxial Fan 7AG71 used for?

The DAYTON Tubeaxial Fan 7AG71 is designed for moving corrosive vapors in industrial ventilation systems. It is suitable for applications requiring a 30-inch blade, 16,495 cfm airflow, and a 230V AC single-phase power supply, such as chemical processing plants or fume exhaust.

What are the specifications of the DAYTON Tubeaxial Fan 7AG71?

The DAYTON Tubeaxial Fan 7AG71 has a 30-inch blade, delivers 16,495 cfm at 0.000 in SP, and operates on 230V AC, 1-phase power with a 5 hp capacitor-start capacitor-run motor. It features a totally enclosed fan-cooled enclosure, horizontal mounting, and is unassembled with a drive package included.

Where to buy the DAYTON Tubeaxial Fan 7AG71 worldwide?

You can source the DAYTON Tubeaxial Fan 7AG71 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide locations. Contact us for availability and lead time on this unassembled belt-drive fan.

How to install the DAYTON Tubeaxial Fan 7AG71?

Install the DAYTON Tubeaxial Fan 7AG71 by mounting it horizontally on a sturdy base, ensuring proper alignment of the belt-drive system. Follow the manufacturer's manual for electrical connections to the 230V AC, 1-phase motor. Use corrosion-resistant ductwork and verify the fan is not used in hazardous locations.
