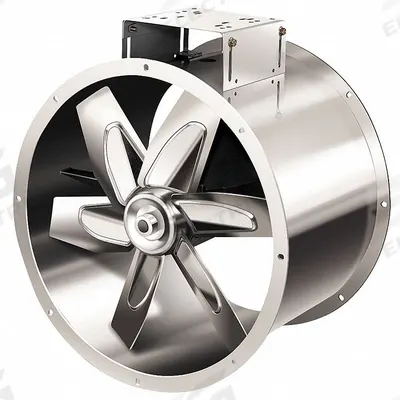

Dayton Tubeaxial Fan: Corrosive Vapor, 48 in Blade, 31,260 cfm @ 0.000 in SP, 230V AC - Corrosive Vapor Belt-Drive Fans with Drive
DaytonCorrosive Vapor Belt-Drive Fans with Drive

Dayton Tubeaxial Fan: Corrosive Vapor, 48 in Blade, 31,260 cfm @ 0.000 in SP, 230V AC

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG76) is an unassembled belt-drive fan with drive, featuring a 48-inch blade and a Capacitor-Start Capacitor-Run motor in a Totally Enclosed Fan Cooled enclosure. It…

SKU 3G-OTH-79050

Brand
Dayton
Item
Tubeaxial Fan: Corrosive Vapor, 48 in Blade, 31,260 cfm @ 0.000 in SP, 230V AC
Category
Corrosive Vapor Belt-Drive Fans with Drive
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
7AG76
Type
31,260 cfm @ 0.000 in SP, 5 hp
AC
230V
Blade
48 in
Phase
1
Assembly
Unassembled
Motor Type
Capacitor-Start Capacitor-Run
Motor Enclosure
Totally Enclosed Fan Cooled
Number of Speeds
1
Nameplate Voltage
230V AC
Mounting Orientation
Vertical
Includes Drive Package
Yes
Airflow @ 0.000 in SP - Range
20,000 to 40,000 cfm
Hazardous Location Specification
Not Rated
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Tubeaxial Fan: Corrosive Vapor (SKU 7AG76) is an unassembled belt-drive fan with drive, featuring a 48-inch blade and a Capacitor-Start Capacitor-Run motor in a Totally Enclosed Fan Cooled enclosure. It operates at 230V AC, single-phase, with a single speed and an airflow range of 20,000 to 40,000 cfm at 0.000 in SP. This unit is designed for vertical mounting and is not rated for hazardous locations.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON Tubeaxial Fan 7AG76 used for?

The DAYTON Tubeaxial Fan 7AG76 is designed for moving corrosive vapors in industrial ventilation systems. It is suitable for applications requiring a 48-inch blade, 31,260 cfm airflow, and vertical mounting. This fan is not rated for hazardous locations and is ideal for chemical processing, wastewater treatment, and fume extraction.

What are the specifications of the DAYTON Tubeaxial Fan 7AG76?

The DAYTON Tubeaxial Fan 7AG76 has a 48-inch blade, delivers 31,260 cfm at 0.000 in SP, and operates on 230V AC, single-phase, with a 5 hp Capacitor-Start Capacitor-Run motor in a Totally Enclosed Fan Cooled enclosure. It is unassembled, includes a drive package, and is for vertical mounting only.

Where to buy the DAYTON Tubeaxial Fan 7AG76 worldwide?

You can source the DAYTON Tubeaxial Fan 7AG76 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we provide competitive pricing and reliable sourcing for this Dayton fan.

How to install the DAYTON Tubeaxial Fan 7AG76?

Install the DAYTON Tubeaxial Fan 7AG76 in a vertical orientation only. Ensure the mounting surface supports the fan weight and vibration. Connect the 230V AC single-phase power to the Capacitor-Start Capacitor-Run motor. Follow standard belt-drive fan alignment and tensioning procedures. Always consult a qualified electrician for wiring.
