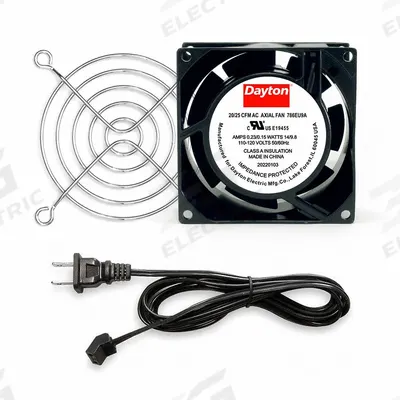

Dayton Axial Fan: 20 cfm_25 cfm Airflow @ 0.000 in SP, 3 1/8 in Ht, 1 1/2 in Dp - Standard Square Axial Fan Kits
DaytonStandard Square Axial Fan Kits

Dayton Axial Fan: 20 cfm_25 cfm Airflow @ 0.000 in SP, 3 1/8 in Ht, 1 1/2 in Dp

The DAYTON Standard Square Axial Fan Kit (SKU 786EU9) is a compact fan delivering 20 to 25 cfm airflow at 0.000 in static pressure. It features a polycarbonate blade material and includes a cord set with a NEMA 1-15…

SKU 3G-OTH-61733

Brand
Dayton
Item
Axial Fan: 20 cfm_25 cfm Airflow @ 0.000 in SP, 3 1/8 in Ht, 1 1/2 in Dp
Category
Standard Square Axial Fan Kits
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
786EU9
Type
Terminals, IP20
Dp
1 1/2 in
Ht
3 1/8 in
Includes
Cord Set with NEMA 1-15 Plug
Blade Material
Polycarbonate
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Standard Square Axial Fan Kit (SKU 786EU9) is a compact fan delivering 20 to 25 cfm airflow at 0.000 in static pressure. It features a polycarbonate blade material and includes a cord set with a NEMA 1-15 plug. The unit measures 3 1/8 inches in height and 1 1/2 inches in depth, with an IP20 rating and terminals for connection.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON axial fan 786EU9 used for?

The DAYTON axial fan 786EU9 is used for cooling and ventilation in compact electronic enclosures, control panels, and small equipment. Its 20–25 cfm airflow at 0.000 in static pressure suits low-resistance applications where space is limited, such as in telecommunications or industrial automation.

What are the specifications of the DAYTON axial fan 786EU9?

The DAYTON axial fan 786EU9 delivers 20 to 25 cfm airflow at 0.000 in static pressure. It has a polycarbonate blade, measures 3 1/8 inches in height and 1 1/2 inches in depth, includes a cord set with NEMA 1-15 plug, and carries an IP20 rating with terminals for connection.

Where to buy the DAYTON axial fan 786EU9 worldwide?

You can source the DAYTON axial fan 786EU9 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply this fan to procurement teams and engineers internationally.

How to install the DAYTON axial fan 786EU9?

Mount the DAYTON axial fan 786EU9 securely in a cutout matching its 3 1/8-inch height and 1 1/2-inch depth. Connect the terminals to a power source using the included NEMA 1-15 plug cord set. Ensure airflow direction matches your cooling need and that the IP20-rated unit is protected from moisture and dust.
