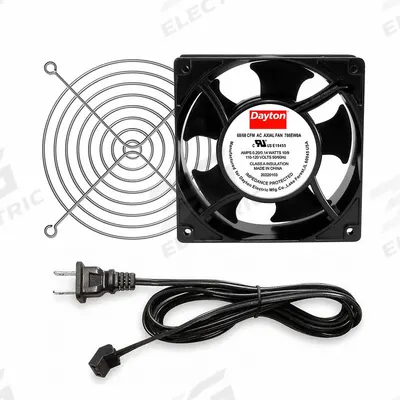

Dayton Axial Fan: 68 cfm Airflow @ 0.000 in SP, 4 3/4 in Ht, 1 1/2 in Dp, Terminals - Standard Square Axial Fan Kits
DaytonStandard Square Axial Fan Kits

Dayton Axial Fan: 68 cfm Airflow @ 0.000 in SP, 4 3/4 in Ht, 1 1/2 in Dp, Terminals

The DAYTON Standard Square Axial Fan Kit (MPN 786EW0) delivers 68 cfm airflow at 0.000 in SP. This 4 3/4 in Ht, 1 1/2 in Dp unit operates on 120V AC and features a polycarbonate blade, IP20 rating, terminals, and…

SKU 3G-OTH-61916

Brand
Dayton
Item
Axial Fan: 68 cfm Airflow @ 0.000 in SP, 4 3/4 in Ht, 1 1/2 in Dp, Terminals
Category
Standard Square Axial Fan Kits
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
786EW0
Type
Terminals, IP20
AC
120V
Dp
1 1/2 in
Ht
4 3/4 in
Includes
Cord Set with NEMA 1-15 Plug
Blade Material
Polycarbonate
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The DAYTON Standard Square Axial Fan Kit (MPN 786EW0) delivers 68 cfm airflow at 0.000 in SP. This 4 3/4 in Ht, 1 1/2 in Dp unit operates on 120V AC and features a polycarbonate blade, IP20 rating, terminals, and includes a cord set with NEMA 1-15 plug.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the DAYTON axial fan 786EW0 used for?

The DAYTON axial fan 786EW0 is used for cooling and ventilation in electronic enclosures, control panels, and small equipment. Its 68 cfm airflow at 0.000 in SP and compact 4 3/4 in height make it suitable for applications requiring reliable air movement in tight spaces.

What are the specifications of the DAYTON axial fan 786EW0?

The DAYTON axial fan 786EW0 delivers 68 cfm airflow at 0.000 in SP, measures 4 3/4 in Ht by 1 1/2 in Dp, operates on 120V AC, and has a polycarbonate blade. It includes terminals, an IP20 rating, and a cord set with NEMA 1-15 plug.

Where to buy the DAYTON axial fan 786EW0 worldwide?

You can source the DAYTON axial fan 786EW0 through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations, ensuring the fan reaches your facility efficiently.

How to install the DAYTON axial fan 786EW0?

Mount the DAYTON axial fan 786EW0 securely using the provided terminals, ensuring proper airflow direction. Connect the cord set with NEMA 1-15 plug to a 120V AC outlet. Verify the IP20 rating allows indoor use only, and avoid obstructing the polycarbonate blade.
