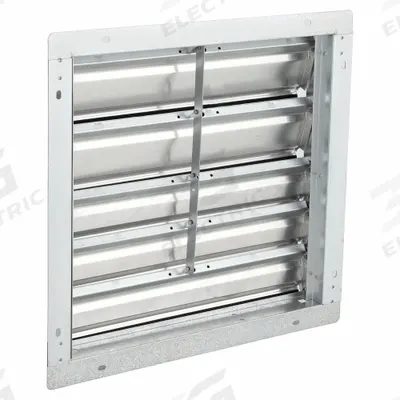

Dayton 21"H-W 5.75"L Alu Wall Backdraft Dampr: For 18 in Fan, Single Panel, 21 in H - Wall-Mount Backdraft Dampers
DaytonWall-Mount Backdraft Dampers

Dayton 21"H-W 5.75"L Alu Wall Backdraft Dampr: For 18 in Fan, Single Panel, 21 in H

The Dayton 1C744 is a wall-mount backdraft damper designed for use with an 18-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The…

SKU 3G-OTH-76198

Brand
Dayton
Item
21"H-W 5.75"L Alu Wall Backdraft Dampr: For 18 in Fan, Single Panel, 21 in H
Category
Wall-Mount Backdraft Dampers
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Dayton
Manufacturer Part Number
1C744
Type
Single Panel, 21 in W
D
2 1/2 in
H
21 in
Blade Type
Flat Blade
Airflow Direction
Horizontal
Mounting Position
Vertical
Maximum Air Velocity
2500 fpm
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Dayton Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Dayton 1C744 is a wall-mount backdraft damper designed for use with an 18-inch fan. It features a single-panel, flat blade construction with a horizontal airflow direction and vertical mounting position. The damper measures 21 inches in height, 21 inches in width, and 2.5 inches in depth, with a maximum air velocity of 2500 fpm.

Supplied to the Philippines — compatible with 60 Hz installations. DHL Express delivery to Manila, Quezon City, Cebu, customs and duties handled door-to-door.

Frequently Asked Questions

What is the Dayton 1C744 backdraft damper used for?

The Dayton 1C744 is a wall-mount backdraft damper used to prevent reverse airflow in exhaust or intake systems. It is designed for use with an 18-inch fan, allowing air to flow horizontally while blocking backdrafts when the fan is off. Common applications include commercial ventilation, industrial exhaust, and HVAC systems.

What are the specifications of the Dayton 1C744 damper?

The Dayton 1C744 is a single-panel, flat blade backdraft damper measuring 21 inches high, 21 inches wide, and 2.5 inches deep. It has a maximum air velocity of 2500 fpm, horizontal airflow direction, and vertical mounting position. The aluminum construction provides corrosion resistance for industrial environments.

Where to buy the Dayton 1C744 worldwide?

The Dayton 1C744 is available to order through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact our team for pricing and lead time on this wall-mount backdraft damper.

How to install the Dayton 1C744 backdraft damper?

Install the Dayton 1C744 vertically with the airflow arrow pointing in the direction of exhaust. Secure the damper frame to the wall opening using appropriate fasteners, ensuring the blades open freely. For best performance, mount the damper on a flat surface and verify the fan's airflow matches the damper's horizontal direction.
